SCAME591.PEM2002-A SCAME SWITCH DISCONNECTOR 20A 2P IP66

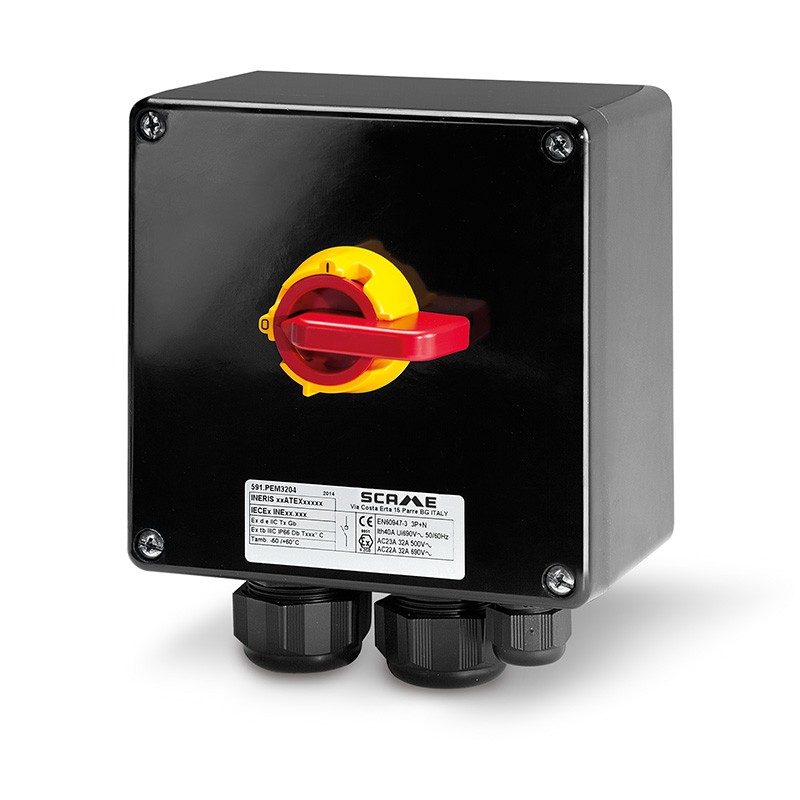

SCAME 591.PEM2002-A 591.PEM2002-A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

591.PEM2002-A SCAME SWITCH DISCONNECTOR 20A 2P IP66

Reference: 591.PEM2002-A

Manufacturer: SCAME

Description:

SWITCH DISCONNECTOR 20A 2P IP66
MANOEUVRING INT. 20A 2P IP66
20A 2P IP66 160x160x90mm II 2GD 7J EMERGENCY YELLOW/RED GW 960°C

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-EX[GD] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
20A
Poles
2P
Dimensions
160x160x90mm
Cable entry
2xM25
Cable size
ø8-18mm
Options
Low temperature [-50°C]
GLOW WIRE
GW 960°C
Protection degree IK
7J
Padlock
ø6mm
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Rated insulation voltage (Ui)
690VAC
Current (Ie) in AC22A (690V)
20A
Current (Ie) in AC23A (500V)
20A
Current (Ie) in AC3 (500V)
20A
Terminals - Flexible wires
10mm²
Terminals - Rigid wires
16mm²
Terminals tightening torque
0,8Nm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.

DATASHEET - PDF

Title
Size
Type
591.PEM2002-A 591.PEM2002-A EN_591.PEM2002-A.pdf
60 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
