SCAME591.AGE4002-A SCAME SWITCH DISCONNECTOR 40A 2P IP66

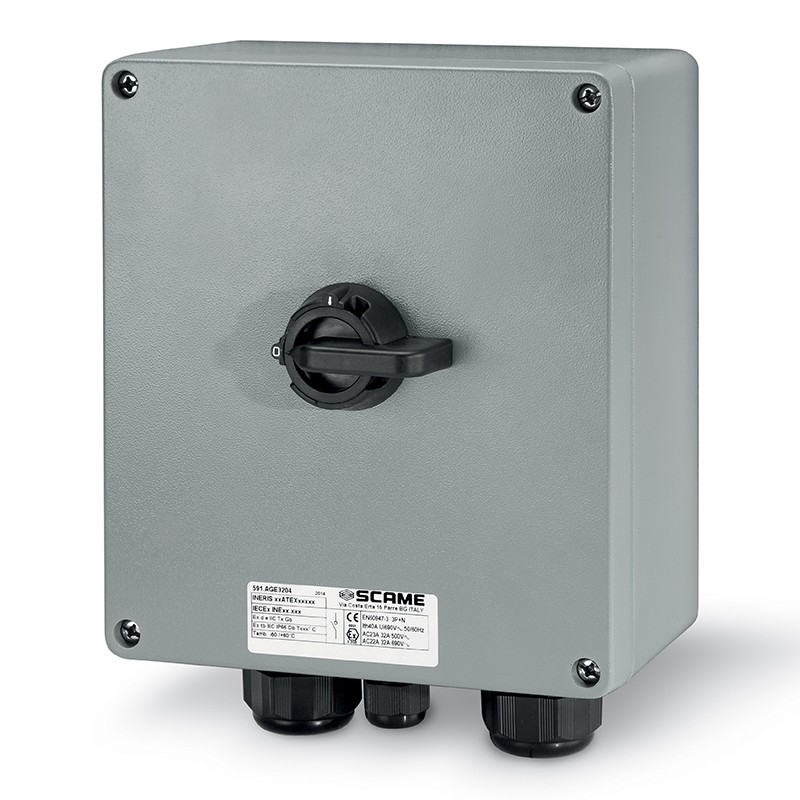

SCAME 591.AGE4002-A 591.AGE4002-A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

591.AGE4002-A SCAME SWITCH DISCONNECTOR 40A 2P IP66

Reference: 591.AGE4002-A

Manufacturer: SCAME

Description:

SWITCH DISCONNECTOR 40A 2P IP66
MANOEUVRING INT. 40A 2P IP66
40A 2P IP66 250x255x120mm II 2GD 7J GENERAL GREY/BLACK

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-EX[GD] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP66
Type
GENERAL
Colour
GREY/BLACK
Rated current
40A
Poles
2P
Dimensions
250x255x120mm
Cable entry
2xM32
Cable size
ø13-24mm
Options
Low temperature [-50°C]
Protection degree IK
7J
Padlock
ø6mm
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Rated insulation voltage (Ui)
690VAC
Current (Ie) in AC22A (690V)
40A
Current (Ie) in AC23A (500V)
40A
Current (Ie) in AC23A (690V)
40A
Current (Ie) in AC3 (500V)
40A
Terminals - Flexible wires
25mm²
Terminals - Rigid wires
35mm²
Terminals tightening torque
2,5Nm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Earth-stud included
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
