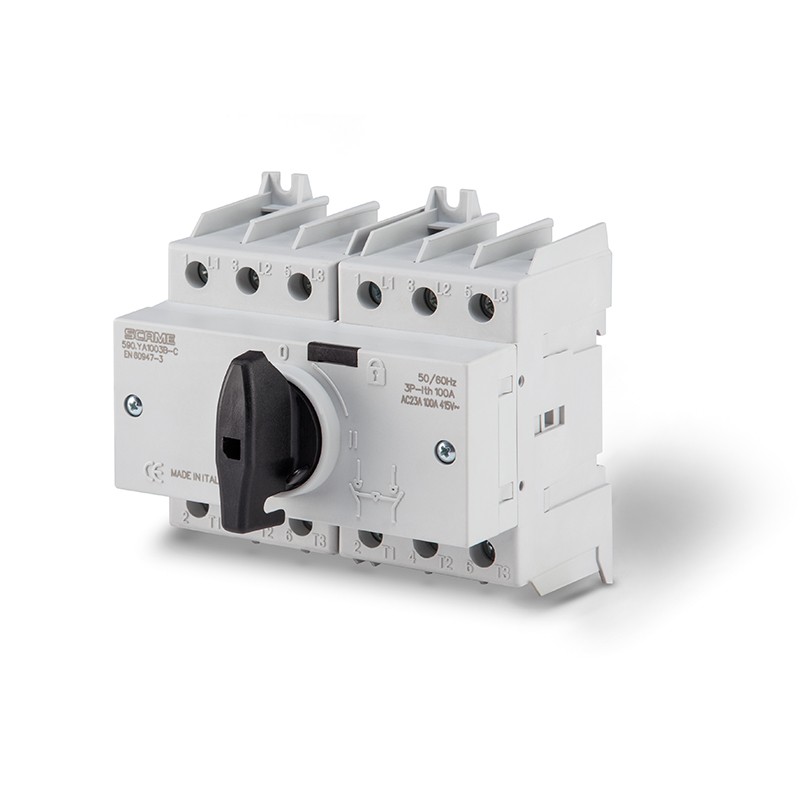

590.YU20806 SCAME MANOEUVRING INT. 80A 6P Y4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.YU20806 SCAME MANOEUVRING INT. 80A 6P Y4

590.YU20806

SCAME

MANOEUVRING INT. 80A 6P Y4

80A 6P Y4 GENERAL

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
COMMAND[UL] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Open type
Material
THERMOPLASTIC
Type
GENERAL
Rated current
80A
Poles
6P
Switch size
Y4
Rated voltage
690V
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
100A
Current (Ie) in AC21A (415V)
100A
Current (Ie) in AC21A (500V)
100A
Current (Ie) in AC21A (690V)
100A
Current (Ie) in AC22A (415V)
80A
Current (Ie) in AC22A (500V)
80A
Current (Ie) in AC22A (690V)
80A
Current (Ie) in AC23A (415V)
80A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
37kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
80A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Equipped with direct handle
DIN rail / screw fixing


Datasheet - PDF
