SCAMESwitches - SCAME590.YU201003-C SCAME COMMUTADOR 100A 3P Y4

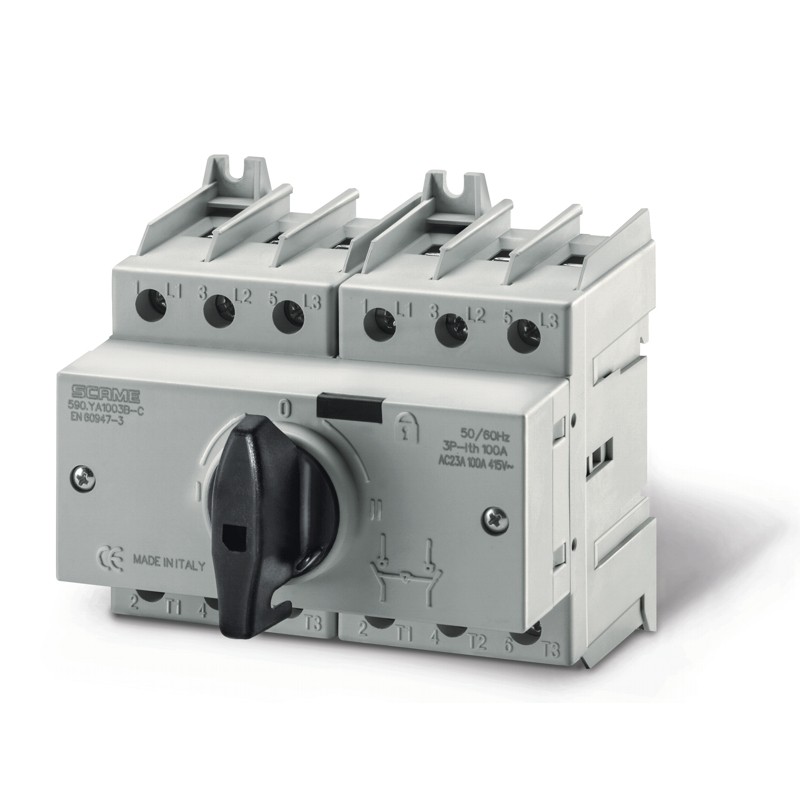

SCAME 590.YU201003-C 590.YU201003-C - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.YU201003-C SCAME COMMUTADOR 100A 3P Y4

Reference: 590.YU201003-C

Manufacturer: SCAME

Description:

COMMUTADOR 100A 3P Y4
100A 3P Y4 GENERAL

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 148,41 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
COMMAND[UL] Series
Synthetical description
CHANGE OVER SWITCH
Construction type
Open type
Material
THERMOPLASTIC
Type
GENERAL
Rated current
100A
Poles
3P
Switch size
Y4
Rated voltage
690V
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
100A
Current (Ie) in AC22A (500V)
100A
Current (Ie) in AC22A (690V)
100A
Current (Ie) in AC23A (415V)
100A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
46kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
30kAeff
Associate fuse - type gG
100A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Equipped with direct handle
DIN rail / screw fixing
