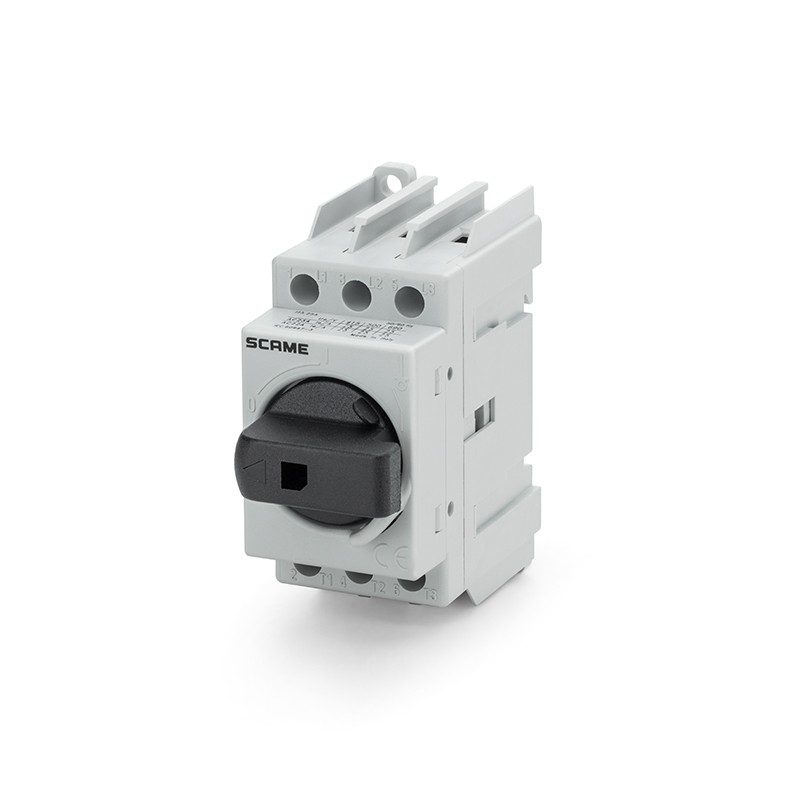

590.YU10166 SCAME MANOEUVRING INT. 16A 6P Y3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.YU10166 SCAME MANOEUVRING INT. 16A 6P Y3

590.YU10166

SCAME

MANOEUVRING INT. 16A 6P Y3

16A 6P Y3 GENERAL

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
COMMAND[UL] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Open type
Material
THERMOPLASTIC
Type
GENERAL
Rated current
16A
Poles
6P
Switch size
Y3
Rated voltage
690V
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
20A
Current (Ie) in AC21A (415V)
20A
Current (Ie) in AC21A (500V)
20A
Current (Ie) in AC21A (690V)
20A
Current (Ie) in AC22A (415V)
16A
Current (Ie) in AC22A (500V)
16A
Current (Ie) in AC22A (690V)
16A
Current (Ie) in AC23A (415V)
16A
Current (Ie) in AC23A (500V)
16A
Current (Ie) in AC23A (690V)
16A
Power AC23A (415V)
7.5kW
Short-time current
1,1kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
16A
Terminals - Flexible wires
2.5-16mm²
Terminals - Rigid wires
2.5-16mm²
Catalogue notes
Equipped with direct handle
DIN rail / screw fixing


Datasheet - PDF
