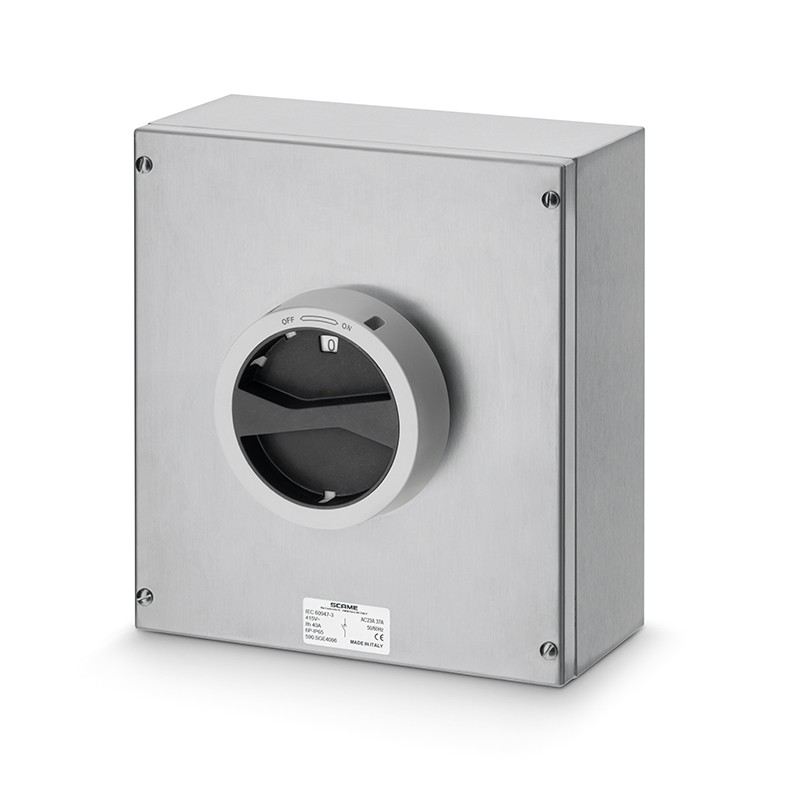

590.SGE1608 SCAME MANOEUVRING INT. 16A 8P IP65 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SGE1608 SCAME MANOEUVRING INT. 16A 8P IP65 GENERAL

590.SGE1608

SCAME

MANOEUVRING INT. 16A 8P IP65 GENERAL

16A 8P IP65 250x280x120mm Y3 IK10 GENERAL GREY/BLACK

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
16A
Poles
8P
Switch size
Y3
Rated voltage
690V
Dimensions
250x280x120mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
20A
Current (Ie) in AC21A (415V)
20A
Current (Ie) in AC21A (500V)
20A
Current (Ie) in AC21A (690V)
20A
Current (Ie) in AC22A (415V)
16A
Current (Ie) in AC22A (500V)
16A
Current (Ie) in AC22A (690V)
16A
Current (Ie) in AC23A (415V)
16A
Current (Ie) in AC23A (500V)
16A
Current (Ie) in AC23A (690V)
16A
Power AC23A (415V)
7.5kW
Short-time current
1,1kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
16A
Terminals - Flexible wires
2.5-16mm²
Terminals - Rigid wires
2.5-16mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)


Datasheet - PDF
