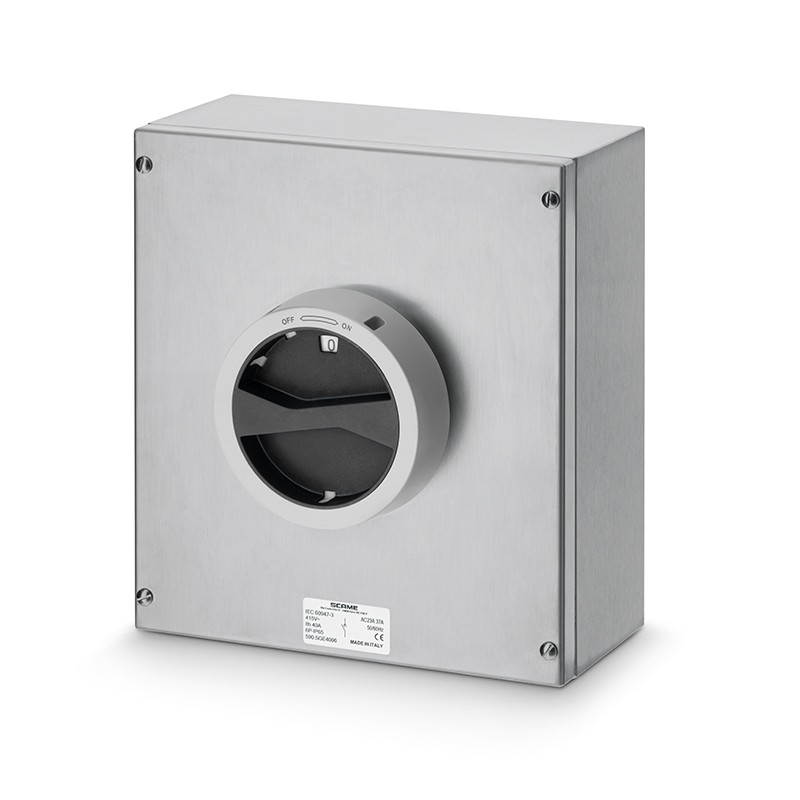

590.SGE10008 SCAME MANOEUVRING INT. 100A 8P IP65 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SGE10008 SCAME MANOEUVRING INT. 100A 8P IP65 GENERAL

590.SGE10008

SCAME

MANOEUVRING INT. 100A 8P IP65 GENERAL

100A 8P IP65 250x280x120mm Y4 IK10 GENERAL GREY/BLACK

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $713.19
Unit price: $713.19
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
100A
Poles
8P
Switch size
Y4
Rated voltage
690V
Dimensions
250x280x120mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
100A
Current (Ie) in AC22A (500V)
100A
Current (Ie) in AC22A (690V)
100A
Current (Ie) in AC23A (415V)
100A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
46kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
30kAeff
Associate fuse - type gG
100A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
