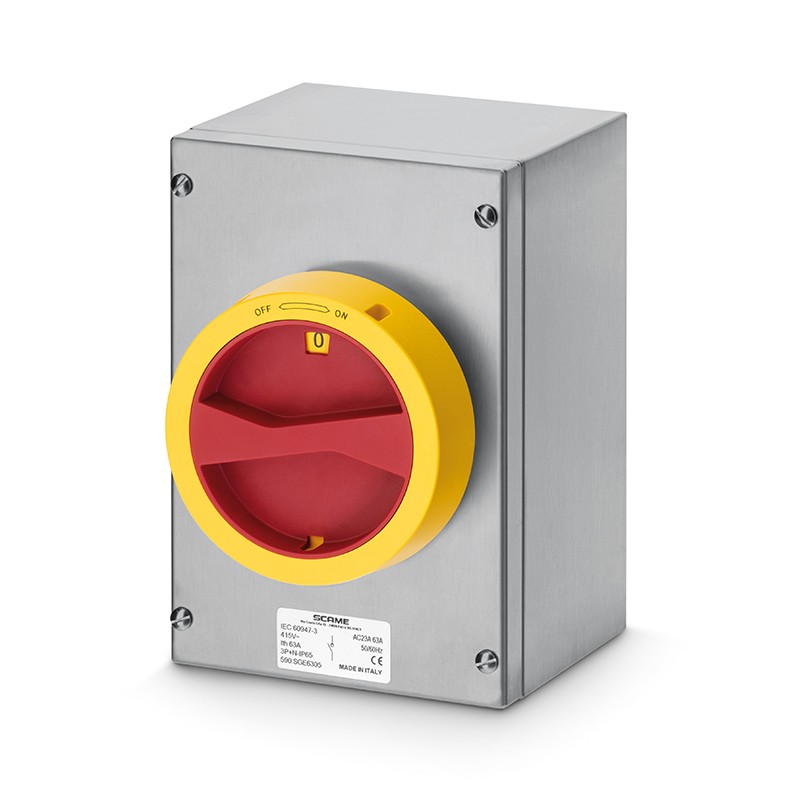

SCAME 590.SEM8003 590.SEM8003 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

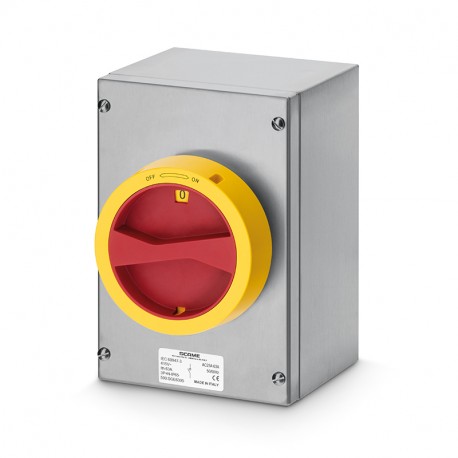

590.SEM8003 SCAME SWITCH DISCONNECTOR 80A 3P IP65

Reference: 590.SEM8003

Manufacturer: SCAME

Description:

SWITCH DISCONNECTOR 80A 3P IP65
MANOEUVRING INT. 80A 3P IP65
80A 3P IP65 150x220x120mm Y4 IK10 EMERGENCY YELLOW/RED

Categories:

  • Low-voltage industrial components > Switch disconnector
  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 289,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
80A
Poles
3P
Switch size
Y4
Rated voltage
690V
Dimensions
150x220x120mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
100A
Current (Ie) in AC21A (415V)
100A
Current (Ie) in AC21A (500V)
100A
Current (Ie) in AC21A (690V)
100A
Current (Ie) in AC22A (415V)
80A
Current (Ie) in AC22A (500V)
80A
Current (Ie) in AC22A (690V)
80A
Current (Ie) in AC23A (415V)
80A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
37kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
80A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
