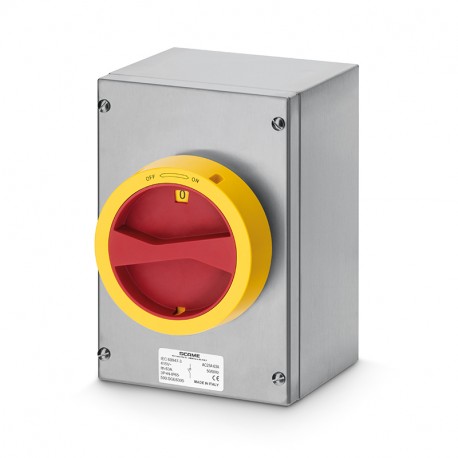

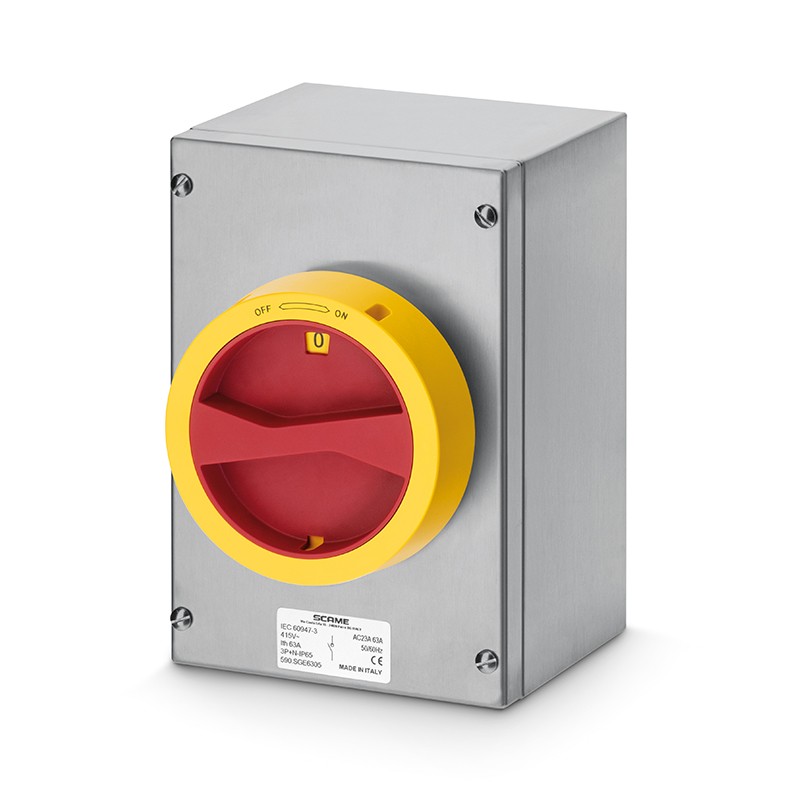

590.SEM6305.SN SCAME MANOEUVRING INT. 63A 3P+SN IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SEM6305.SN SCAME MANOEUVRING INT. 63A 3P+SN IP65

590.SEM6305.SN

SCAME

MANOEUVRING INT. 63A 3P+SN IP65

63A 3P+N LINK IP65 150x220x120mm Y4 IK10 EMERGENCY YELLOW/RED SN (WITH NEUTRAL LINK)

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
63A
Poles
3P+N LINK
Switch size
Y4
Rated voltage
690V
Dimensions
150x220x120mm
Notes
SN (WITH NEUTRAL LINK)
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
80A
Current (Ie) in AC21A (415V)
80A
Current (Ie) in AC21A (500V)
80A
Current (Ie) in AC21A (690V)
80A
Current (Ie) in AC22A (415V)
63A
Current (Ie) in AC22A (500V)
63A
Current (Ie) in AC22A (690V)
63A
Current (Ie) in AC23A (415V)
63A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
35kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
63A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.SEM6305.SN 590.SEM6305.SN EN_590.SEM6305.SN.pdf 61 Kbytes 590.SEM6305.SN 590.SEM6305.SN EN_590.SEM6305.SN.pdf
Download general catalog Download general catalog
