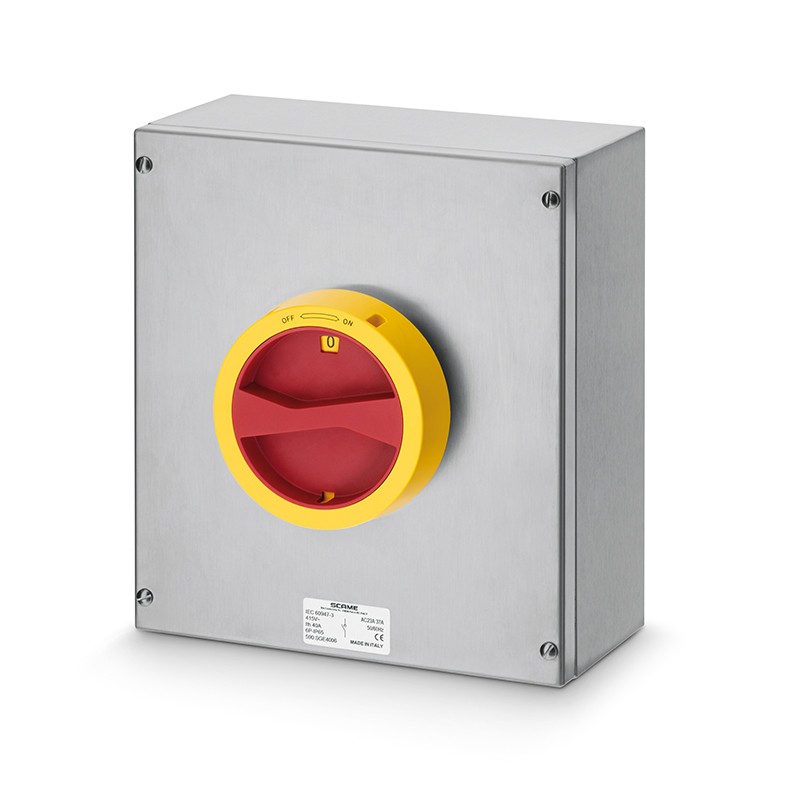

590.SEM3208 SCAME MANEUVER INT. 32A 8P IP65 EMERGENCY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SEM3208 SCAME MANEUVER INT. 32A 8P IP65 EMERGENCY

590.SEM3208

SCAME

MANEUVER INT. 32A 8P IP65 EMERGENCY

32A 8P IP65 250x280x120mm Y3 IK10 EMERGENCY YELLOW/RED

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
32A
Poles
8P
Switch size
Y3
Rated voltage
690V
Dimensions
250x280x120mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
40A
Current (Ie) in AC21A (415V)
40A
Current (Ie) in AC21A (500V)
40A
Current (Ie) in AC21A (690V)
40A
Current (Ie) in AC22A (415V)
32A
Current (Ie) in AC22A (500V)
32A
Current (Ie) in AC22A (690V)
32A
Current (Ie) in AC23A (415V)
32A
Current (Ie) in AC23A (500V)
32A
Current (Ie) in AC23A (690V)
25A
Power AC23A (415V)
15kW
Short-time current
1,1kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
32A
Terminals - Flexible wires
2.5-16mm²
Terminals - Rigid wires
2.5-16mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)


Datasheet - PDF
