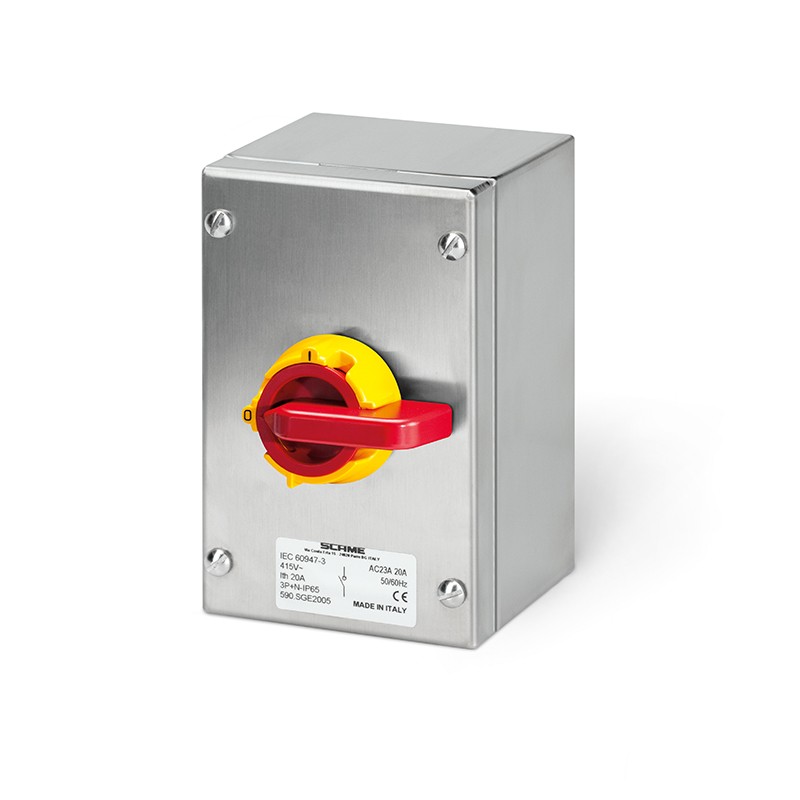

590.SEM2005.SN SCAME MANOEUVRING INT. 20A 3P+SN IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SEM2005.SN SCAME MANOEUVRING INT. 20A 3P+SN IP65

590.SEM2005.SN

SCAME

MANOEUVRING INT. 20A 3P+SN IP65

20A 3P+N LINK IP65 100x160x90mm Y1 IK10 EMERGENCY YELLOW/RED SN (WITH NEUTRAL LINK)

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $291.55
Unit price: $291.55
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
20A
Poles
3P+N LINK
Switch size
Y1
Rated voltage
690V
Dimensions
100x160x90mm
Notes
SN (WITH NEUTRAL LINK)
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
25A
Current (Ie) in AC21A (415V)
25A
Current (Ie) in AC21A (500V)
25A
Current (Ie) in AC21A (690V)
25A
Current (Ie) in AC22A (415V)
20A
Current (Ie) in AC22A (500V)
20A
Current (Ie) in AC22A (690V)
20A
Current (Ie) in AC23A (415V)
20A
Current (Ie) in AC23A (500V)
20A
Current (Ie) in AC23A (690V)
20A
Current (Ie) in AC3 (415V)
18A
Current (Ie) in AC3 (690V)
12A
Current (Ie) in DC22A (250V)
25A
Current (Ie) in DC22A (600V)
10A
Power AC23A (415V)
9kW
Short-time current
400A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
20A
Terminals - Flexible wires
1.5-10mm²
Terminals - Rigid wires
1.5-16mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.SEM2005.SN 590.SEM2005.SN EN_590.SEM2005.SN.pdf 37 Kbytes 590.SEM2005.SN 590.SEM2005.SN EN_590.SEM2005.SN.pdf
