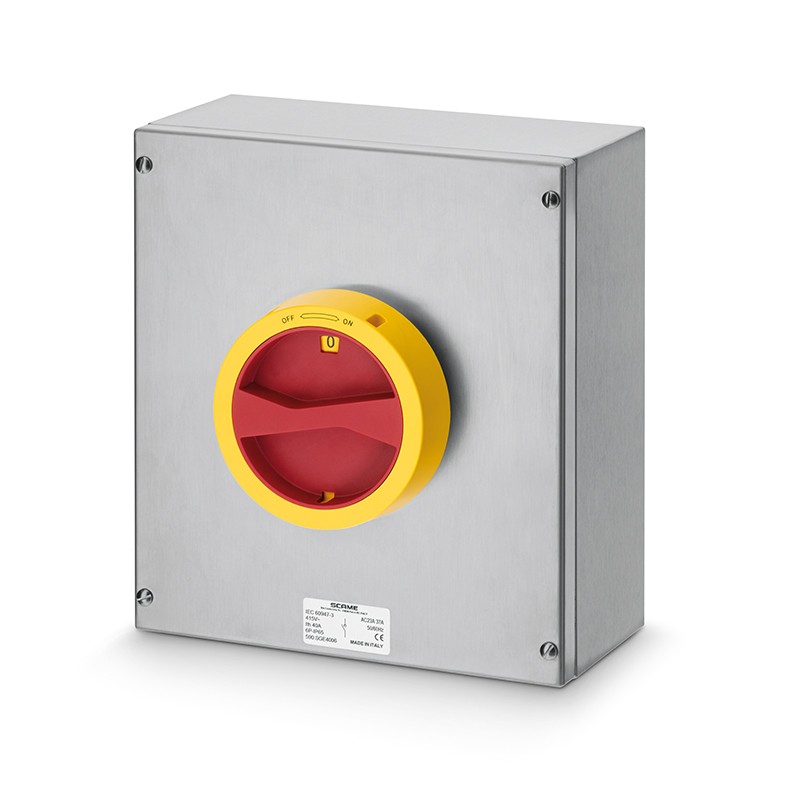

590.SEM1606 SCAME SWITCH DISCONNECTOR 16A 6P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SEM1606 SCAME SWITCH DISCONNECTOR 16A 6P IP65

590.SEM1606

SCAME

SWITCH DISCONNECTOR 16A 6P IP65

MANEUVER INT. 16A 6P IP65 EMERGENCY

16A 6P IP65 250x280x120mm Y3 IK10 EMERGENCY YELLOW/RED

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $542.18
Unit price: $542.18
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
16A
Poles
6P
Switch size
Y3
Rated voltage
690V
Dimensions
250x280x120mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
20A
Current (Ie) in AC21A (415V)
20A
Current (Ie) in AC21A (500V)
20A
Current (Ie) in AC21A (690V)
20A
Current (Ie) in AC22A (415V)
16A
Current (Ie) in AC22A (500V)
16A
Current (Ie) in AC22A (690V)
16A
Current (Ie) in AC23A (415V)
16A
Current (Ie) in AC23A (500V)
16A
Current (Ie) in AC23A (690V)
16A
Power AC23A (415V)
7.5kW
Short-time current
1,1kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
16A
Terminals - Flexible wires
2.5-16mm²
Terminals - Rigid wires
2.5-16mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
