> SCAME>Switches - SCAME>590.SEM12508 SCAME MANEUVER INT. 125A 8P IP65 EMERGENCY
ANUNCIAR
Previous Product Next Product

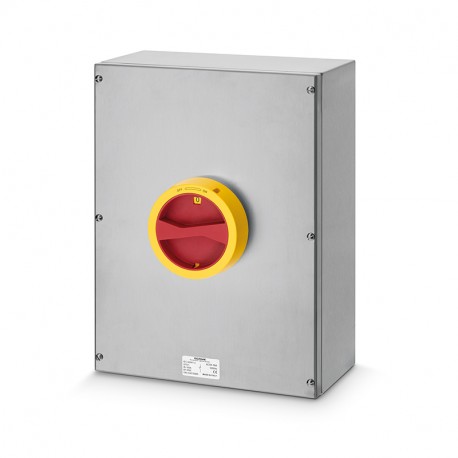

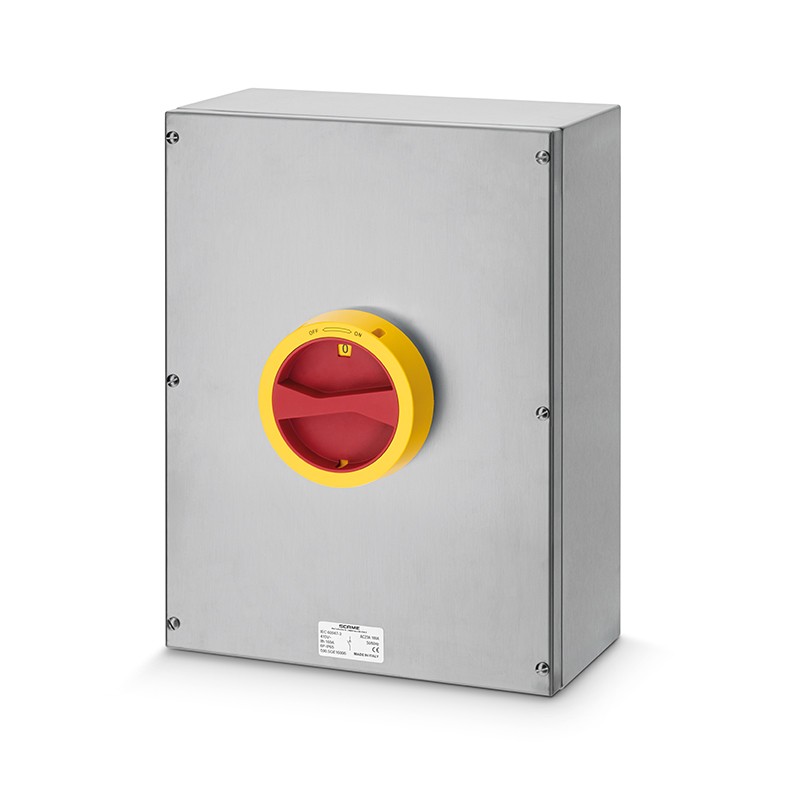

590.SEM12508 SCAME MANEUVER INT. 125A 8P IP65 EMERGENCY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.SEM12508 SCAME MANEUVER INT. 125A 8P IP65 EMERGENCY

590.SEM12508

SCAME

MANEUVER INT. 125A 8P IP65 EMERGENCY

125A 8P IP65 300x400x150mm Y5 IK10 EMERGENCY YELLOW/RED

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
125A
Poles
8P
Switch size
Y5
Rated voltage
690V
Dimensions
300x400x150mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
160A
Current (Ie) in AC21A (415V)
160A
Current (Ie) in AC21A (500V)
160A
Current (Ie) in AC21A (690V)
160A
Current (Ie) in AC22A (415V)
125A
Current (Ie) in AC22A (500V)
125A
Current (Ie) in AC22A (690V)
125A
Current (Ie) in AC23A (415V)
125A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
55kW
Short-time current
3kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
125A
Terminals - Flexible wires
10-70mm²
Terminals - Rigid wires
10-70mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.SEM12508 590.SEM12508 EN_590.SEM12508.pdf 55 Kbytes 590.SEM12508 590.SEM12508 EN_590.SEM12508.pdf
Download general catalog Download general catalog
