SCAMESwitches - SCAME590.SEM10008 SCAME MANEUVER INT. 100A 8P IP65 EMERGENCY

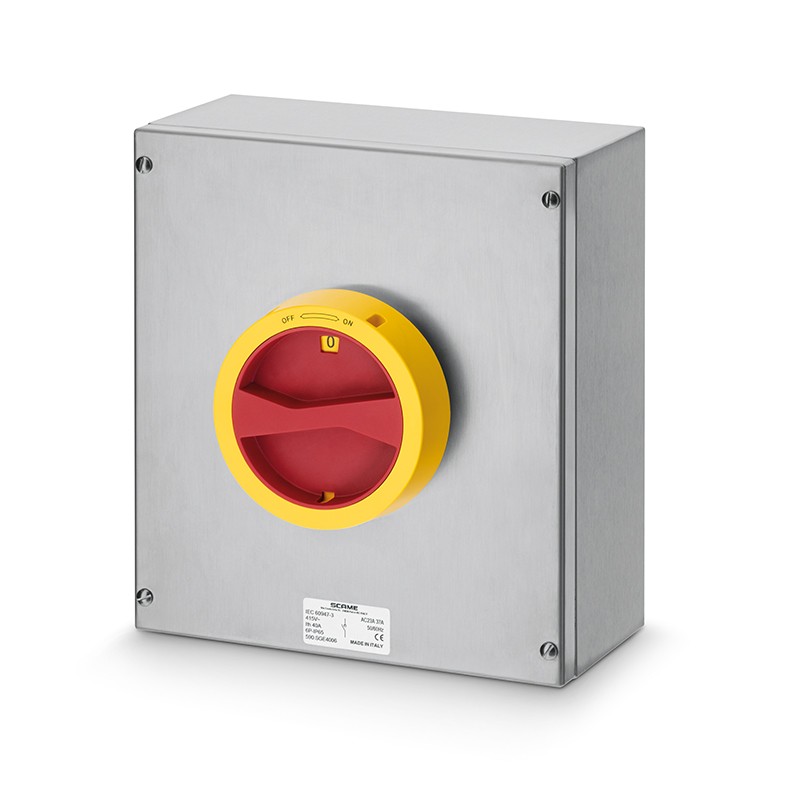

SCAME 590.SEM10008 590.SEM10008 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.SEM10008 SCAME MANEUVER INT. 100A 8P IP65 EMERGENCY

Reference: 590.SEM10008

Manufacturer: SCAME

Description:

MANEUVER INT. 100A 8P IP65 EMERGENCY
100A 8P IP65 250x280x120mm Y4 IK10 EMERGENCY YELLOW/RED

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
100A
Poles
8P
Switch size
Y4
Rated voltage
690V
Dimensions
250x280x120mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
100A
Current (Ie) in AC22A (500V)
100A
Current (Ie) in AC22A (690V)
100A
Current (Ie) in AC23A (415V)
100A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
46kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
30kAeff
Associate fuse - type gG
100A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)

DATASHEET - PDF

Title
Size
Type
590.SEM10008 590.SEM10008 EN_590.SEM10008.pdf
58 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
