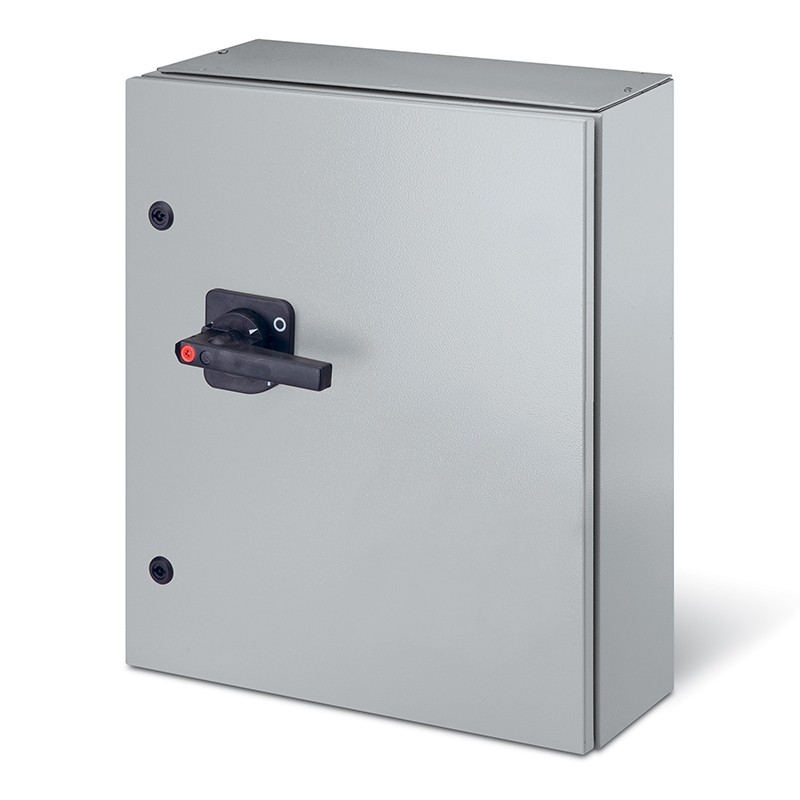

590.KGEB20005B SCAME SWITCH DISCONNECTOR IP65 200A 3P+N View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.KGEB20005B SCAME SWITCH DISCONNECTOR IP65 200A 3P+N

590.KGEB20005B

SCAME

SWITCH DISCONNECTOR IP65 200A 3P+N

MANOEUVRING INT. 200A 3P+N KF2 IP65

200A 3P+N IP65 BS 400x600x250mm KF3 IK10 GENERAL GREY/BLACK FUSE: BS WITH BUSBAR

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
200A
Poles
3P+N
Switch size
KF3
Fuse type
BS
Rated voltage
690V
Dimensions
400x600x250mm
Notes
FUSE: BS
WITH BUSBAR
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
1500VDC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
200A
Current (Ie) in AC21A (415V)
200A
Current (Ie) in AC21A (500V)
200A
Current (Ie) in AC21A (690V)
200A
Current (Ie) in AC22A (415V)
200A
Current (Ie) in AC22A (500V)
200A
Current (Ie) in AC22A (690V)
200A
Current (Ie) in AC23A (415V)
200A
Current (Ie) in AC23A (500V)
160A
Current (Ie) in AC23A (690V)
125A
Current (Ie) in DC21A (220V)
200A
Current (Ie) in DC21A (400V)
200A
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
200A
Terminal bolt size
M10
Palm width
25mm
Catalogue notes
BOTTOM/BOTTOM = Bottom/Bottom connection with busbar
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Fuses not supplied
With late break and early make neutral pole
Gland plate cable entry on bottom side
