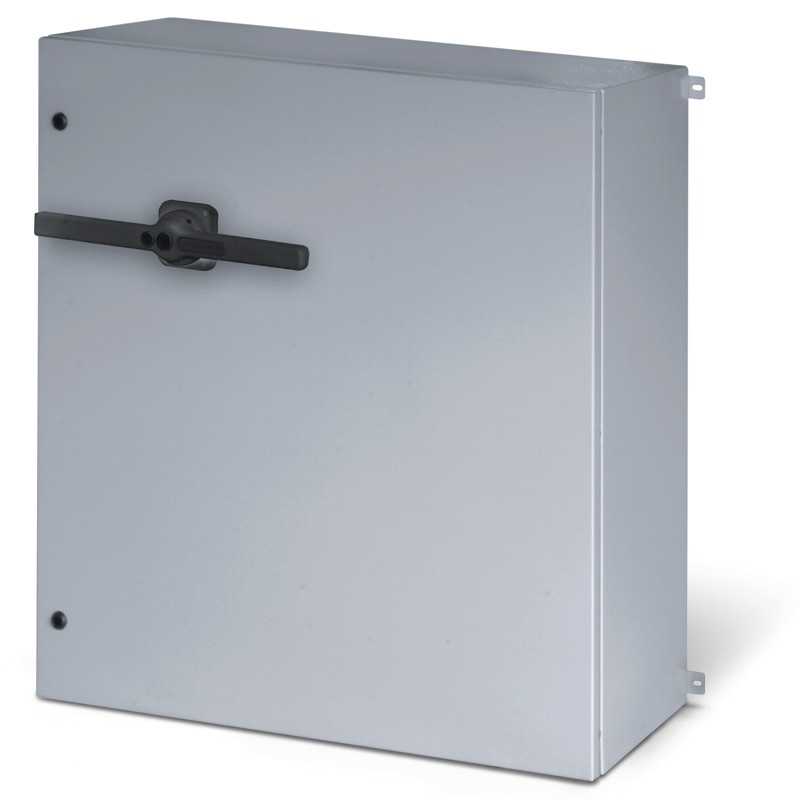

590.KGE63005BSN SCAME MANOEUVRING INT. 630A 3P+SN IP65 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.KGE63005BSN SCAME MANOEUVRING INT. 630A 3P+SN IP65 GENERAL

590.KGE63005BSN

SCAME

MANOEUVRING INT. 630A 3P+SN IP65 GENERAL

630A 3P+N LINK IP65 800x800x300mm K4 IK10 GENERAL GREY/BLACK WITH BUSBAR SN (WITH NEUTRAL LINK)

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
630A
Poles
3P+N LINK
Switch size
K4
Rated voltage
690V
Dimensions
800x800x300mm
Notes
WITH BUSBAR
SN (WITH NEUTRAL LINK)
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
800A
Current (Ie) in AC21A (415V)
630/800A
Current (Ie) in AC21A (500V)
630/800A
Current (Ie) in AC21A (690V)
630/800A
Current (Ie) in AC22A (415V)
630/800A
Current (Ie) in AC22A (500V)
630A
Current (Ie) in AC22A (690V)
630A
Current (Ie) in AC23A (415V)
630A
Current (Ie) in AC23A (500V)
500A
Current (Ie) in AC23A (690V)
400A
Power AC23A (415V)
330kW
Short-time current
26,5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
630A
Terminal bolt size
M12
Palm width
30mm
Catalogue notes
BOTTOM/BOTTOM = Bottom/Bottom connection with busbar
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Gland plate cable entry on bottom side
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.KGE63005BSN 590.KGE63005BSN EN_590.KGE63005BSN.pdf 29 Kbytes 590.KGE63005BSN 590.KGE63005BSN EN_590.KGE63005BSN.pdf
Download general catalog Download general catalog
