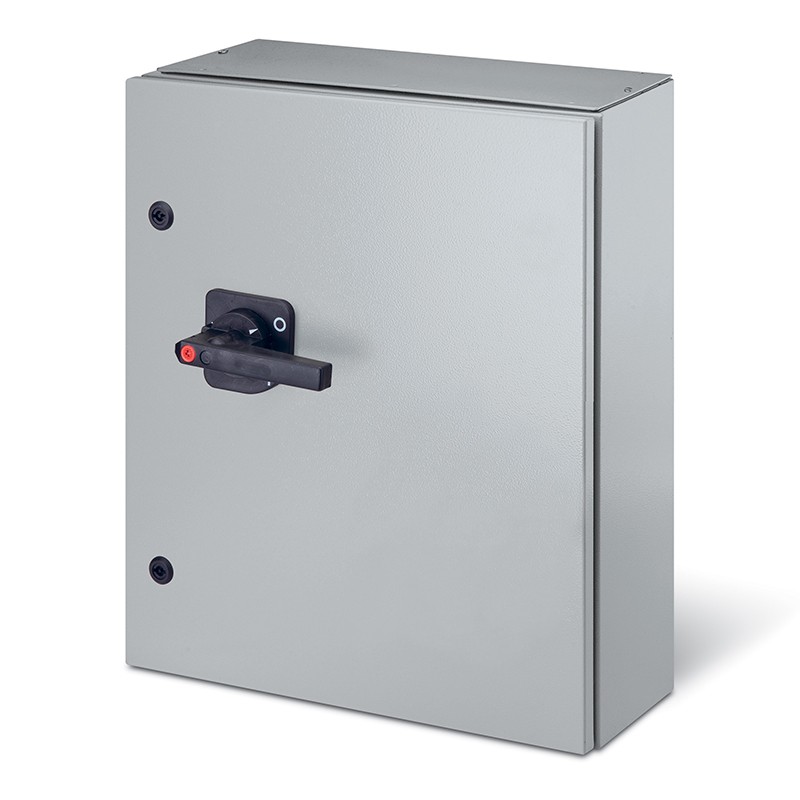

590.KGE40006 SCAME MANOEUVRING INT. 400A 6P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.KGE40006 SCAME MANOEUVRING INT. 400A 6P IP65

590.KGE40006

SCAME

MANOEUVRING INT. 400A 6P IP65

400A 6P IP65 800x800x300mm K3 IK10 GENERAL GREY/BLACK

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $1,288.22
Unit price: $1,288.22
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
400A
Poles
6P
Switch size
K3
Rated voltage
690V
Dimensions
800x800x300mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
500A
Current (Ie) in AC21A (415V)
500A
Current (Ie) in AC21A (500V)
500A
Current (Ie) in AC21A (690V)
500A
Current (Ie) in AC22A (415V)
400A
Current (Ie) in AC22A (500V)
400A
Current (Ie) in AC22A (690V)
400A
Current (Ie) in AC23A (415V)
400A
Current (Ie) in AC23A (500V)
315A
Current (Ie) in AC23A (690V)
250A
Power AC23A (415V)
200kW
Short-time current
13kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
400A
Terminal bolt size
M10
Palm width
25mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Gland plate cable entry on bottom side
