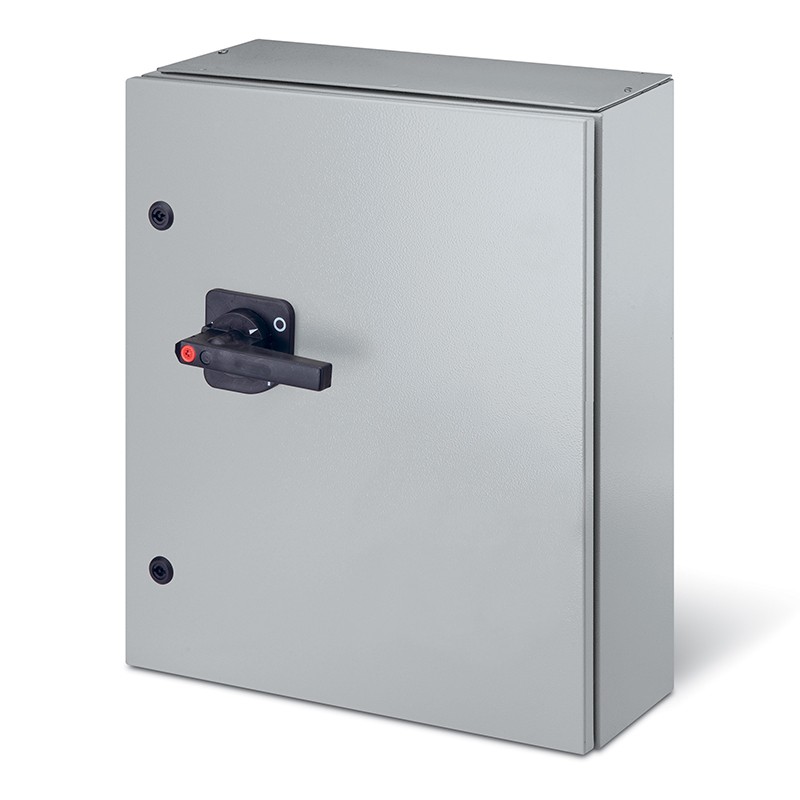

590.KGE12508 SCAME MANOEUVRING INT. 125A 8P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.KGE12508 SCAME MANOEUVRING INT. 125A 8P IP65

590.KGE12508

SCAME

MANOEUVRING INT. 125A 8P IP65

125A 8P IP65 400x500x200mm K1 IK10 GENERAL GREY/BLACK

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
125A
Poles
8P
Switch size
K1
Rated voltage
690V
Dimensions
400x500x200mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
125A
Current (Ie) in AC22A (500V)
125A
Current (Ie) in AC22A (690V)
125A
Current (Ie) in AC23A (415V)
125A
Current (Ie) in AC23A (500V)
100A
Current (Ie) in AC23A (690V)
80A
Power AC23A (415V)
65kW
Short-time current
5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
125A
Terminal bolt size
M6
Palm width
15mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Gland plate cable entry on bottom side


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.KGE12508 590.KGE12508 EN_590.KGE12508.pdf 46 Kbytes 590.KGE12508 590.KGE12508 EN_590.KGE12508.pdf
Download general catalog Download general catalog
