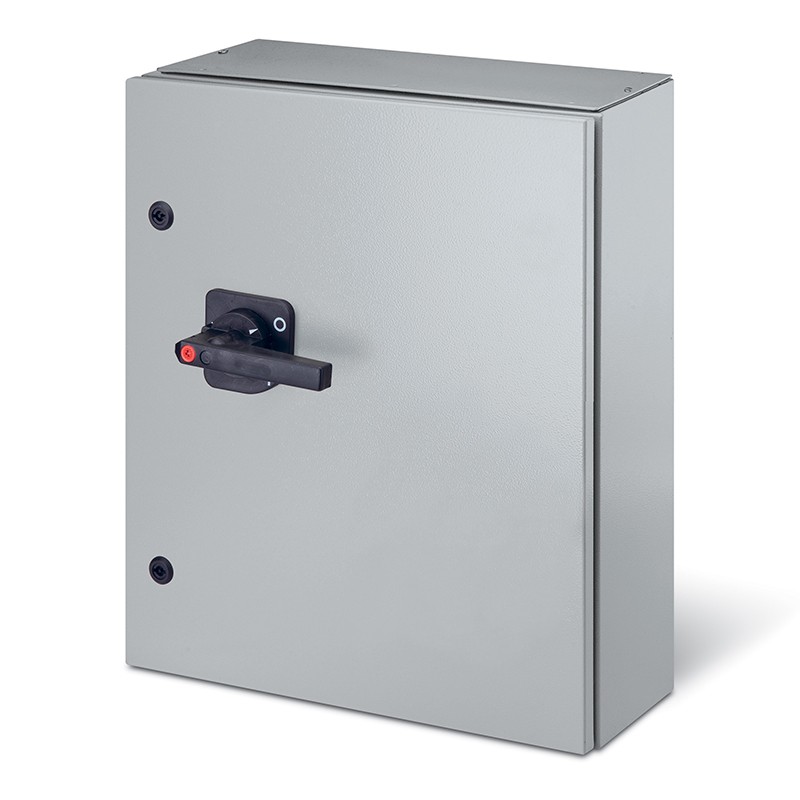

590.KEMD40003 SCAME SWITCH DISCONNECTOR IP65 400A 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.KEMD40003 SCAME SWITCH DISCONNECTOR IP65 400A 3P

590.KEMD40003

SCAME

SWITCH DISCONNECTOR IP65 400A 3P

MANOEUVRING INT. 400A 3P KF4 IP65

400A 3P IP65 DIN-NH 500x700x250mm KF4 IK10 EMERGENCY YELLOW/RED FUSE: DIN-NH

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
400A
Poles
3P
Switch size
KF4
Fuse type
DIN-NH
Rated voltage
690V
Dimensions
500x700x250mm
Notes
FUSE: DIN-NH
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
1500VDC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
400A
Current (Ie) in AC21A (415V)
400A
Current (Ie) in AC21A (500V)
400A
Current (Ie) in AC21A (690V)
400A
Current (Ie) in AC22A (415V)
400A
Current (Ie) in AC22A (500V)
400A
Current (Ie) in AC22A (690V)
400A
Current (Ie) in AC23A (415V)
400A
Current (Ie) in AC23A (500V)
315A
Current (Ie) in AC23A (690V)
250A
Current (Ie) in DC21A (220V)
400A
Current (Ie) in DC21A (400V)
400A
Current (Ie) in DC21A (600V)
400A
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
400A
Terminal bolt size
M12
Palm width
30mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Fuses not supplied
Gland plate cable entry on bottom side
