SCAMESwitches - SCAME590.KEM63006 SCAME MANOEUVRING INT. 630A 6P IP65

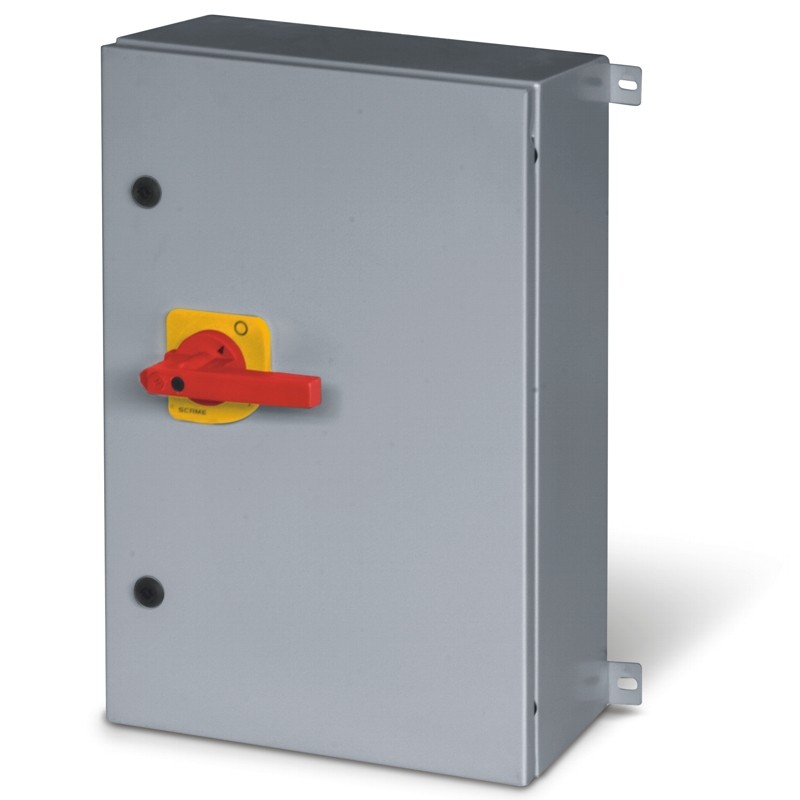

SCAME 590.KEM63006 590.KEM63006 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.KEM63006 SCAME MANOEUVRING INT. 630A 6P IP65

Reference: 590.KEM63006

Manufacturer: SCAME

Description:

MANOEUVRING INT. 630A 6P IP65
630A 6P IP65 1000x1000x300mm K4 IK10 EMERGENCY YELLOW/RED

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
630A
Poles
6P
Switch size
K4
Rated voltage
690V
Dimensions
1000x1000x300mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
800A
Current (Ie) in AC21A (415V)
630/800A
Current (Ie) in AC21A (500V)
630/800A
Current (Ie) in AC21A (690V)
630/800A
Current (Ie) in AC22A (415V)
630/800A
Current (Ie) in AC22A (500V)
630A
Current (Ie) in AC22A (690V)
630A
Current (Ie) in AC23A (415V)
630A
Current (Ie) in AC23A (500V)
500A
Current (Ie) in AC23A (690V)
400A
Power AC23A (415V)
330kW
Short-time current
26,5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
630A
Terminal bolt size
M12
Palm width
30mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Gland plate cable entry on bottom side
