SCAMESwitches - SCAME590.KEM25006 SCAME MANOEUVRING INT. 250A 6P IP65

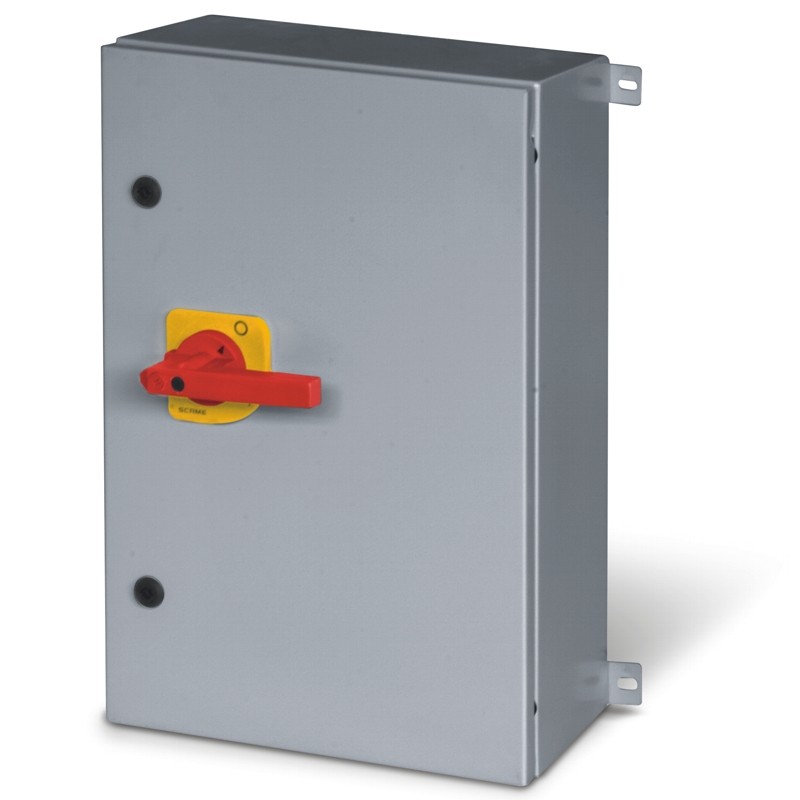

SCAME 590.KEM25006 590.KEM25006 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.KEM25006 SCAME MANOEUVRING INT. 250A 6P IP65

Reference: 590.KEM25006

Manufacturer: SCAME

Description:

MANOEUVRING INT. 250A 6P IP65
250A 6P IP65 600x800x300mm K2 IK10 EMERGENCY YELLOW/RED

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
250A
Poles
6P
Switch size
K2
Rated voltage
690V
Dimensions
600x800x300mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
250A
Current (Ie) in AC21A (415V)
250A
Current (Ie) in AC21A (500V)
250A
Current (Ie) in AC21A (690V)
250A
Current (Ie) in AC22A (415V)
250A
Current (Ie) in AC22A (500V)
250A
Current (Ie) in AC22A (690V)
250A
Current (Ie) in AC23A (415V)
250A
Current (Ie) in AC23A (500V)
200A
Current (Ie) in AC23A (690V)
160A
Power AC23A (415V)
130kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
250A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Gland plate cable entry on bottom side

DATASHEET - PDF

Title
Size
Type
590.KEM25006 590.KEM25006 EN_590.KEM25006.pdf
28 Kbytes
PDF CATALOGUE SCAME EN
