SCAMESwitches - SCAME590.KEM16005.SN SCAME MANOEUVRING INT. 160A 3P+SN IP65

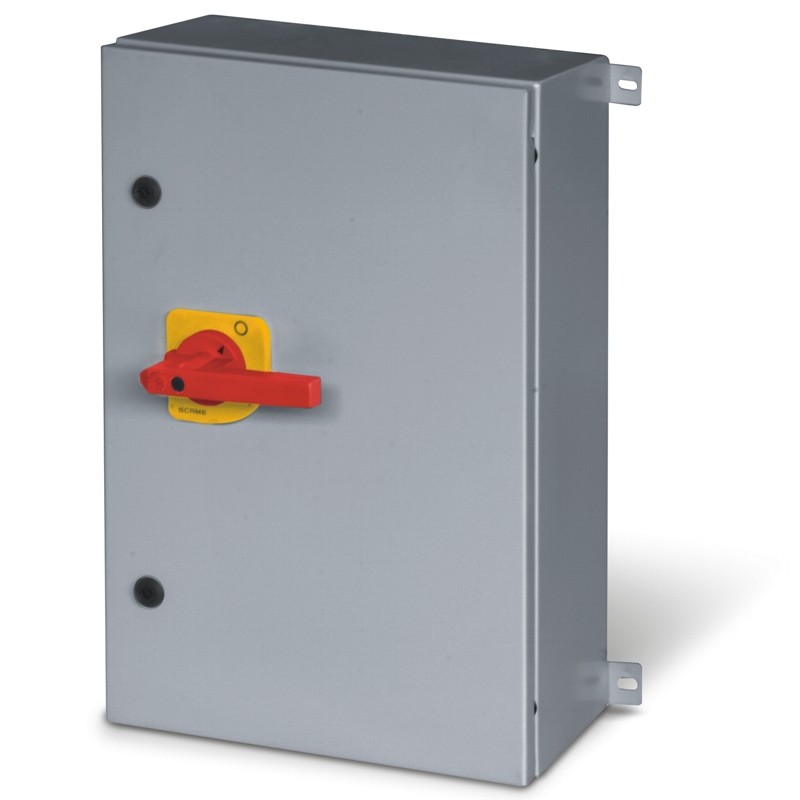

SCAME 590.KEM16005.SN 590.KEM16005.SN - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.KEM16005.SN SCAME MANOEUVRING INT. 160A 3P+SN IP65

Reference: 590.KEM16005.SN

Manufacturer: SCAME

Description:

MANOEUVRING INT. 160A 3P+SN IP65
160A 3P+N LINK IP65 300x500x200mm K2 IK10 EMERGENCY YELLOW/RED SN (WITH NEUTRAL LINK)

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
160A
Poles
3P+N LINK
Switch size
K2
Rated voltage
690V
Dimensions
300x500x200mm
Notes
SN (WITH NEUTRAL LINK)
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
200A
Current (Ie) in AC21A (415V)
200A
Current (Ie) in AC21A (500V)
200A
Current (Ie) in AC21A (690V)
200A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
160A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
100A
Power AC23A (415V)
85kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
160A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Gland plate cable entry on bottom side
Unswitched neutral (solid neutral terminal block)
