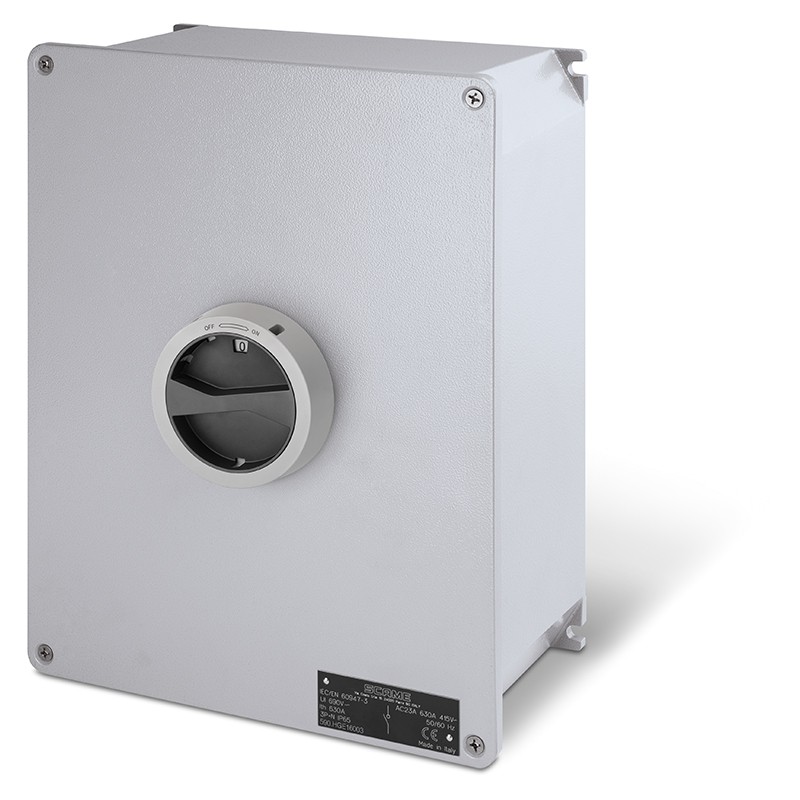

590.HGE6302.W SCAME MANOEUVRING INT. 63A 2P IP65 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.HGE6302.W SCAME MANOEUVRING INT. 63A 2P IP65 GENERAL

590.HGE6302.W

SCAME

MANOEUVRING INT. 63A 2P IP65 GENERAL

63A 2P IP65 264x315x122mm Y2 IK08 GENERAL GREY/BLACK HIGH WIRING CAPACITY

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $208.27
Unit price: $208.27
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-AL Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
63A
Poles
2P
Switch size
Y2
Rated voltage
690V
Dimensions
264x315x122mm
Notes
HIGH WIRING CAPACITY
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
63A
Current (Ie) in AC21A (415V)
63A
Current (Ie) in AC21A (500V)
63A
Current (Ie) in AC21A (690V)
63A
Current (Ie) in AC22A (415V)
63A
Current (Ie) in AC22A (500V)
63A
Current (Ie) in AC22A (690V)
63A
Current (Ie) in AC23A (415V)
63A
Current (Ie) in AC23A (500V)
40A
Current (Ie) in AC23A (690V)
30A
Current (Ie) in AC3 (415V)
40A
Current (Ie) in AC3 (690V)
25A
Current (Ie) in DC22A (250V)
63A
Power AC23A (415V)
33kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
63A
Terminals - Flexible wires
Terminals - Rigid wires
10-35mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
With late break and early make neutral pole
Switch and enclosure increased dimensions
