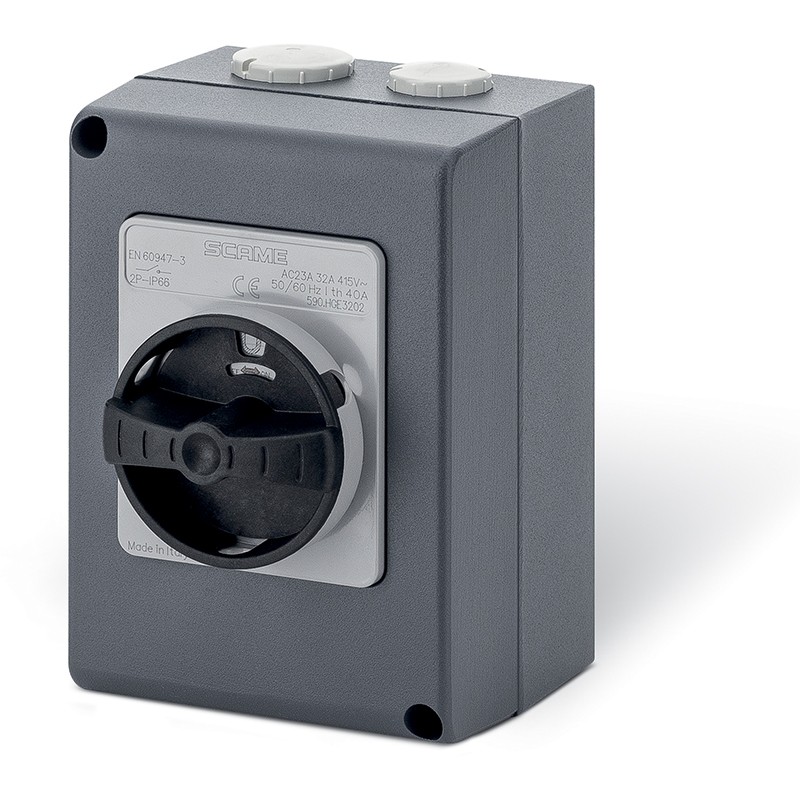

590.HGE3205.SN SCAME MANOEUVRING INT. 32A 3P+SN IP66 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.HGE3205.SN SCAME MANOEUVRING INT. 32A 3P+SN IP66 GENERAL

590.HGE3205.SN

SCAME

MANOEUVRING INT. 32A 3P+SN IP66 GENERAL

32A 3P+N LINK IP66 105x150x82mm Y1 IK10 GENERAL GREY/BLACK SN (WITH NEUTRAL LINK)

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $84.53
Unit price: $84.53
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-AL Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP66
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
32A
Poles
3P+N LINK
Switch size
Y1
Rated voltage
690V
Dimensions
105x150x82mm
Notes
SN (WITH NEUTRAL LINK)
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
40A
Current (Ie) in AC21A (415V)
40A
Current (Ie) in AC21A (500V)
32A
Current (Ie) in AC21A (690V)
32A
Current (Ie) in AC22A (415V)
32A
Current (Ie) in AC22A (500V)
32A
Current (Ie) in AC22A (690V)
32A
Current (Ie) in AC23A (415V)
32A
Current (Ie) in AC23A (500V)
25A
Current (Ie) in AC23A (690V)
25A
Current (Ie) in AC3 (415V)
25A
Current (Ie) in AC3 (690V)
18A
Current (Ie) in DC22A (250V)
32A
Current (Ie) in DC22A (600V)
10A
Power AC23A (415V)
15kW
Short-time current
400A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
32A
Terminals - Flexible wires
1.5-10mm²
Terminals - Rigid wires
1.5-16mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Unswitched neutral (solid neutral terminal block)
Open threaded cable entry with cap / cable sleeve


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.HGE3205.SN 590.HGE3205.SN EN_590.HGE3205.SN.pdf 50 Kbytes 590.HGE3205.SN 590.HGE3205.SN EN_590.HGE3205.SN.pdf
