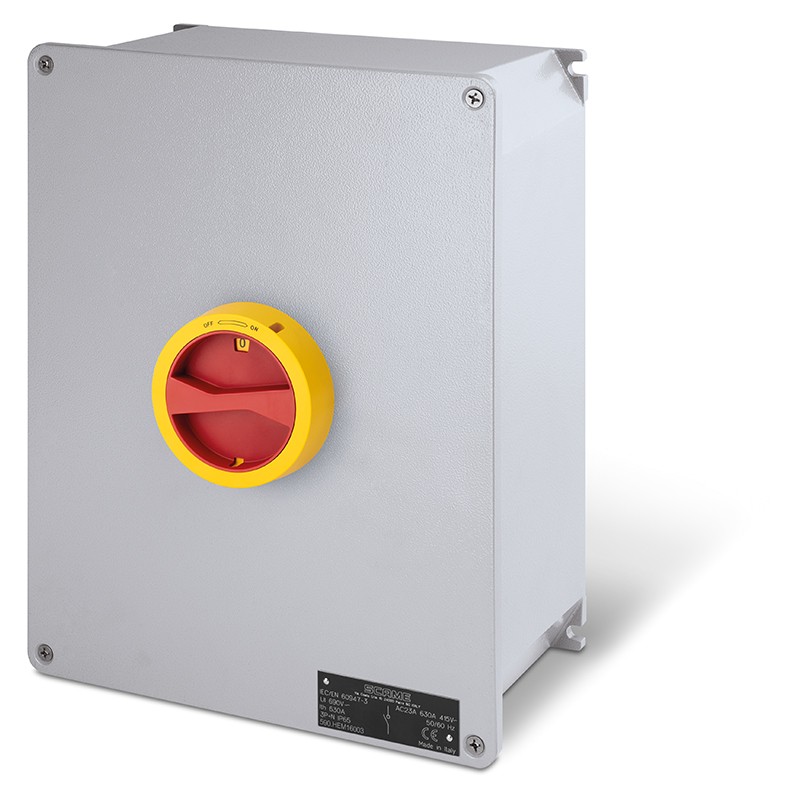

590.HEM8002.WSN SCAME MANOEUVRING INT. 80A 1P+SN IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.HEM8002.WSN SCAME MANOEUVRING INT. 80A 1P+SN IP65

590.HEM8002.WSN

SCAME

MANOEUVRING INT. 80A 1P+SN IP65

80A 1P+N LINK IP65 264x315x122mm Y2 IK08 EMERGENCY YELLOW/RED HIGH WIRING CAPACITY SN (WITH NEUTRAL LINK)

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-AL Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
80A
Poles
1P+N LINK
Switch size
Y2
Rated voltage
250V
Dimensions
264x315x122mm
Notes
HIGH WIRING CAPACITY
SN (WITH NEUTRAL LINK)
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
80A
Current (Ie) in AC21A (415V)
80A
Current (Ie) in AC21A (500V)
80A
Current (Ie) in AC21A (690V)
80A
Current (Ie) in AC22A (415V)
80A
Current (Ie) in AC22A (500V)
80A
Current (Ie) in AC22A (690V)
80A
Current (Ie) in AC23A (415V)
67A
Current (Ie) in AC23A (500V)
67A
Current (Ie) in AC23A (690V)
38A
Current (Ie) in AC3 (415V)
55A
Current (Ie) in AC3 (690V)
32A
Current (Ie) in DC22A (250V)
63A
Power AC23A (415V)
37kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
80A
Terminals - Flexible wires
Terminals - Rigid wires
10-35mm²
Catalogue notes
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Blank sides
Unswitched neutral (solid neutral terminal block)
Switch and enclosure increased dimensions


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.HEM8002.WSN 590.HEM8002.WSN EN_590.HEM8002.WSN.pdf 54 Kbytes 590.HEM8002.WSN 590.HEM8002.WSN EN_590.HEM8002.WSN.pdf
