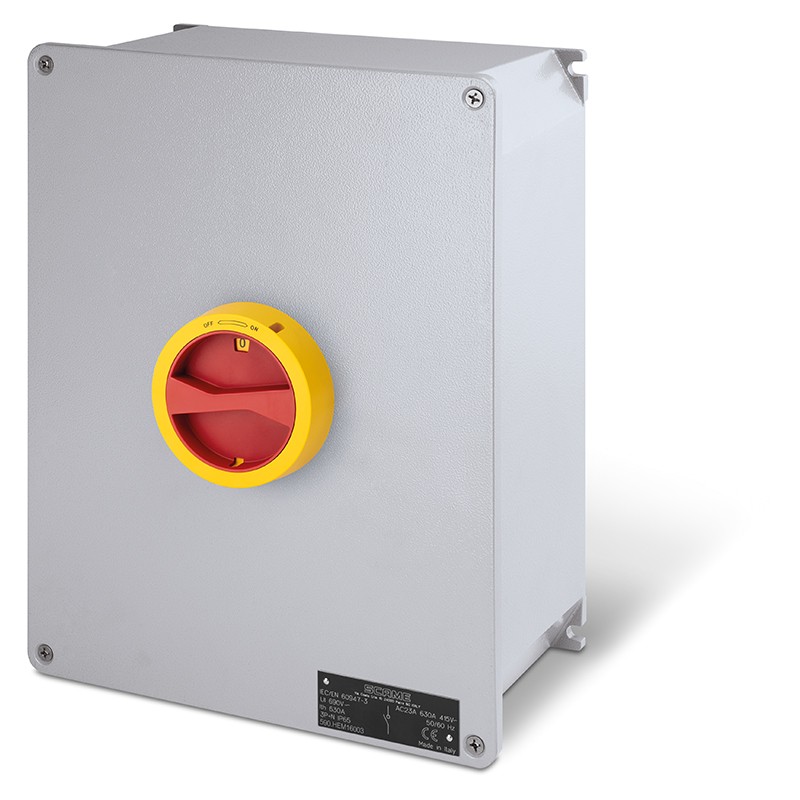

590.HEM16005.WSN SCAME MANOEUVRING INT. 160A 3P+SN IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.HEM16005.WSN SCAME MANOEUVRING INT. 160A 3P+SN IP65

590.HEM16005.WSN

SCAME

MANOEUVRING INT. 160A 3P+SN IP65

160A 3P+N LINK IP65 315x410x150mm K2 IK08 EMERGENCY YELLOW/RED HIGH WIRING CAPACITY SN (WITH NEUTRAL LINK)

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-AL Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
160A
Poles
3P+N LINK
Switch size
K2
Rated voltage
690V
Dimensions
315x410x150mm
Notes
HIGH WIRING CAPACITY
SN (WITH NEUTRAL LINK)
Protection degree IK
IK08
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
200A
Current (Ie) in AC21A (415V)
200A
Current (Ie) in AC21A (500V)
200A
Current (Ie) in AC21A (690V)
200A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
160A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
100A
Power AC23A (415V)
85kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
160A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
Handle padlockable in OFF position only (3 padlocks)
Equipped with door interlock
Blank sides
Unswitched neutral (solid neutral terminal block)
Switch and enclosure increased dimensions


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.HEM16005.WSN 590.HEM16005.WSN EN_590.HEM16005.WSN.pdf 54 Kbytes 590.HEM16005.WSN 590.HEM16005.WSN EN_590.HEM16005.WSN.pdf
