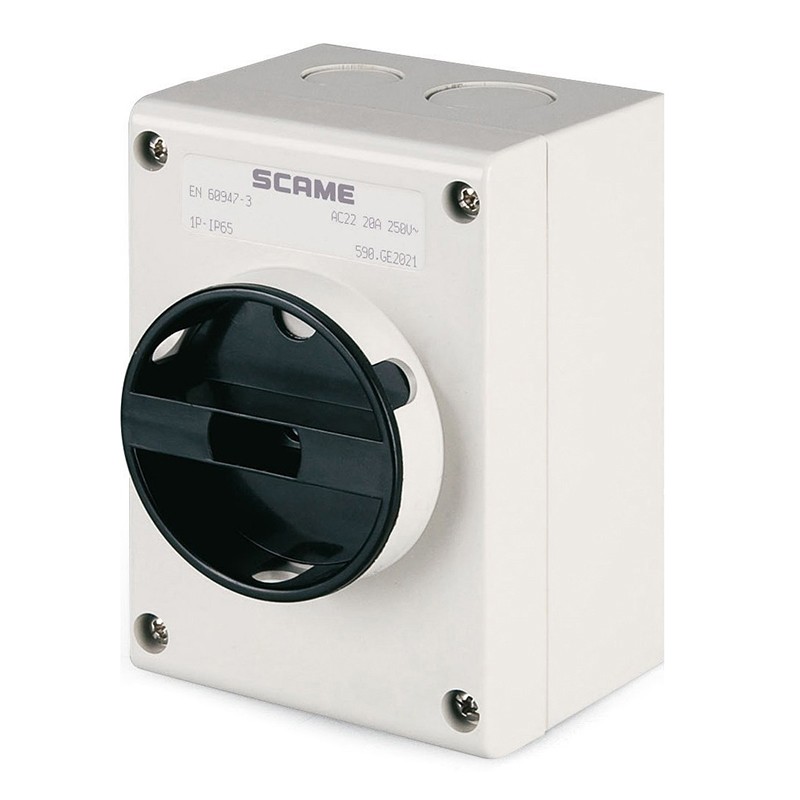

590.GE3222.SN SCAME MANOEUVRING INT. 32A 1P+SN IP65 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.GE3222.SN SCAME MANOEUVRING INT. 32A 1P+SN IP65 GENERAL

590.GE3222.SN

SCAME

12

MANOEUVRING INT. 32A 1P+SN IP65 GENERAL

32A 1P+N LINK IP65 82x120x69mm Y01 IK09 GENERAL GREY/BLACK SN (WITH NEUTRAL LINK) GW 650°C

More details


Switches - SCAME > ISOLATORS Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $336.78
Unit price: $28.07
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
32A
Poles
1P+N LINK
Switch size
Y01
Rated voltage
250V
Dimensions
82x120x69mm
Notes
SN (WITH NEUTRAL LINK)
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Rated insulation voltage (Ui)
250VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
32A
Current (Ie) in AC22A (250V)
32A
Current (Ie) in AC23A (250V)
22A
Short-time current
480A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
32A
Terminals - Flexible wires
1.5-6mm²
Terminals - Rigid wires
1.5-6mm²
Catalogue notes
Unswitched neutral (solid neutral terminal block)
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Break-through cable entries
Suitable to switch single phase motor loads or other inductive loads


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.GE3222.SN 590.GE3222.SN EN_590.GE3222.SN.pdf 44 Kbytes 590.GE3222.SN 590.GE3222.SN EN_590.GE3222.SN.pdf
