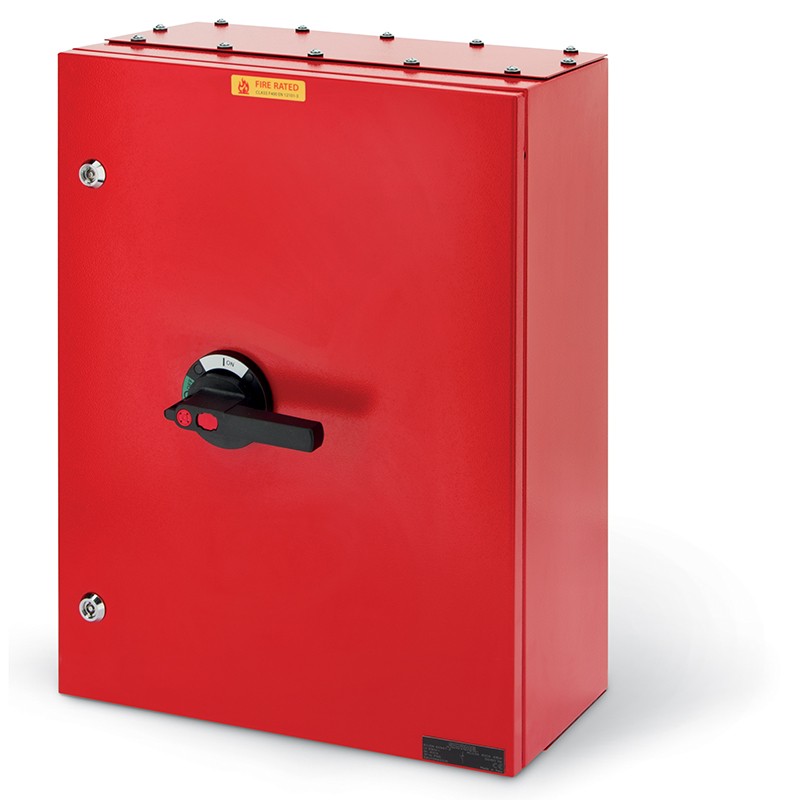

590.FGE40003.U SCAME SWITCH DISCONNECTOR 400A 3P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.FGE40003.U SCAME SWITCH DISCONNECTOR 400A 3P IP65

590.FGE40003.U

SCAME

SWITCH DISCONNECTOR 400A 3P IP65

MANOEUVRING INT. 400A 3P IP65 GENERAL

400A 3P IP65 500x700x250mm FR5 IK10 GENERAL GREY/BLACK FIRE RATED 1xNA+1xNC

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $2,187.09
Unit price: $2,187.09
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
400A
Poles
3P
Switch size
FR5
Rated voltage
690V
Dimensions
500x700x250mm
Notes
FIRE RATED
Fire rated class
F400 (120min)
Notes1
1xNA+1xNC
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
400A
Current (Ie) in AC21A (415V)
400A
Current (Ie) in AC22A (415V)
400A
Current (Ie) in AC23A (415V)
400A
Power AC23A (415V)
210kW
Short-time current
13kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
400A
Terminals - Rigid wires
10-70mm²
Terminal bolt size
M10
Palm width
25mm
Catalogue notes
Equipped with door interlock
Gland plate cable entry on bottom side
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with NO/NC auxiliary contacts
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.FGE40003.U 590.FGE40003.U EN_590.FGE40003.U.pdf 51 Kbytes 590.FGE40003.U 590.FGE40003.U EN_590.FGE40003.U.pdf
Download general catalog Download general catalog
