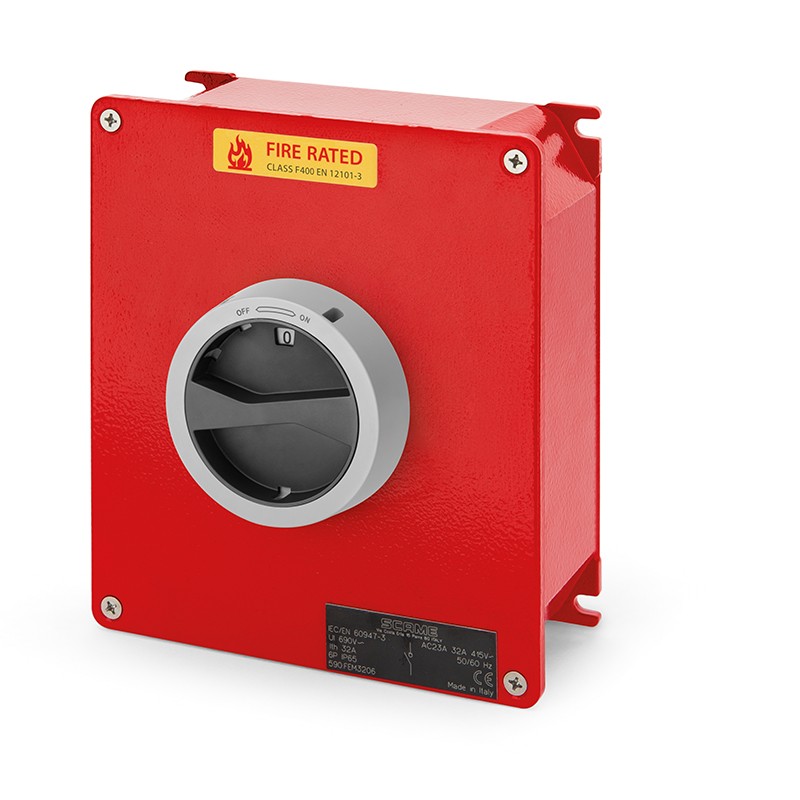

590.FGE2006 SCAME SWITCH DISCONNECTOR 20A 6P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.FGE2006 SCAME SWITCH DISCONNECTOR 20A 6P IP65

590.FGE2006

SCAME

SWITCH DISCONNECTOR 20A 6P IP65

SWITCHING INT. 20A 6P IP65 GENERAL

20A 6P IP65 217x253x93mm FR1 IK08 GENERAL GREY/BLACK FIRE RATED

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $319.83
Unit price: $319.83
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
20A
Poles
6P
Switch size
FR1
Rated voltage
690V
Dimensions
217x253x93mm
Notes
FIRE RATED
Fire rated class
F400 (120min)
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
6KV
Thermal current (Ithe)
25A
Current (Ie) in AC21A (415V)
25A
Current (Ie) in AC22A (415V)
20A
Current (Ie) in AC23A (415V)
20A
Power AC23A (415V)
9kW
Short-time current
400A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
16A
Terminals - Flexible wires
1.5-10mm²
Terminals - Rigid wires
1.5-16mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides


Datasheet - PDF
