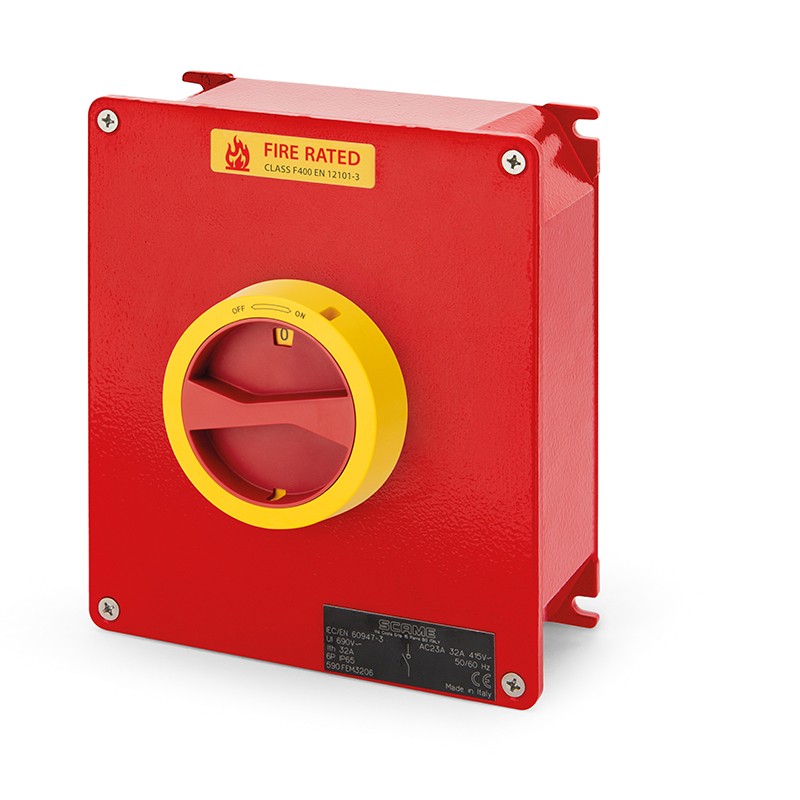

590.FEM3203 SCAME SWITCH DISCONNECTOR 32A 3P IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.FEM3203 SCAME SWITCH DISCONNECTOR 32A 3P IP65

590.FEM3203

SCAME

SWITCH DISCONNECTOR 32A 3P IP65

MANOEUVRING INT. 32A 3P IP65

32A 3P IP65 168x192x80mm FR1 IK08 EMERGENCY YELLOW/RED FIRE RATED

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $330.32
Unit price: $330.32
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
32A
Poles
3P
Switch size
FR1
Rated voltage
690V
Dimensions
168x192x80mm
Notes
FIRE RATED
Fire rated class
F400 (120min)
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
6KV
Thermal current (Ithe)
40A
Current (Ie) in AC21A (415V)
40A
Current (Ie) in AC22A (415V)
32A
Current (Ie) in AC23A (415V)
32A
Power AC23A (415V)
15kW
Short-time current
400A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
32A
Terminals - Flexible wires
1.5-10mm²
Terminals - Rigid wires
1.5-16mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.FEM3203 590.FEM3203 EN_590.FEM3203.pdf 69 Kbytes 590.FEM3203 590.FEM3203 EN_590.FEM3203.pdf
Download general catalog Download general catalog
