SCAMESwitches - SCAME590.FEM3202 SCAME SWITCH DISCONNECTOR 32A 2P IP65

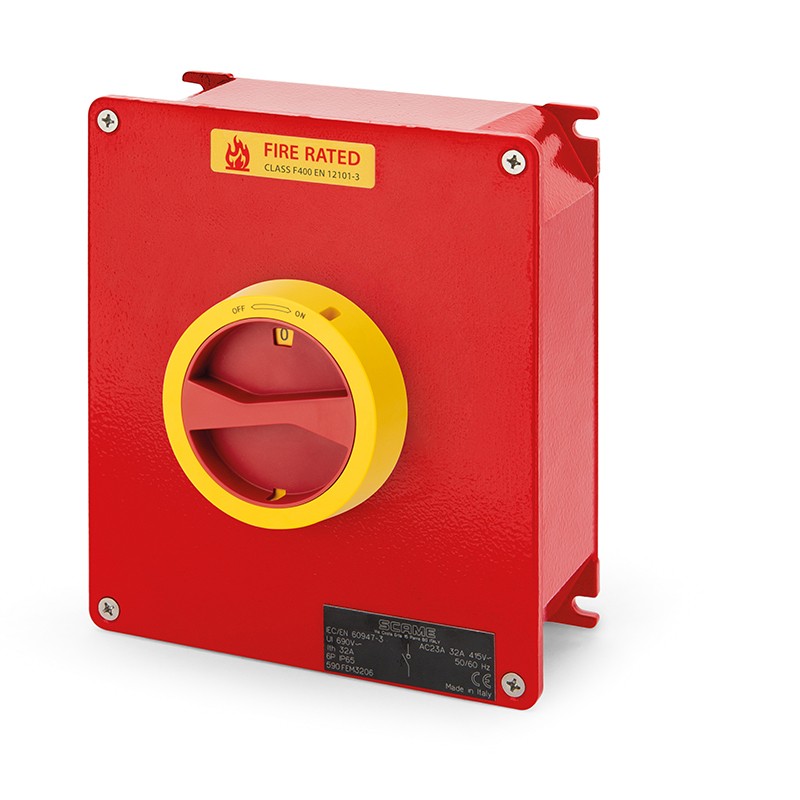

SCAME 590.FEM3202 590.FEM3202 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.FEM3202 SCAME SWITCH DISCONNECTOR 32A 2P IP65

Reference: 590.FEM3202

Manufacturer: SCAME

Description:

SWITCH DISCONNECTOR 32A 2P IP65
MANEUVER INT. 32A 2P IP65 EMERGENCY
32A 2P IP65 168x192x80mm FR1 IK08 EMERGENCY YELLOW/RED FIRE RATED

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 214,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
32A
Poles
2P
Switch size
FR1
Rated voltage
690V
Dimensions
168x192x80mm
Notes
FIRE RATED
Fire rated class
F400 (120min)
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
6KV
Thermal current (Ithe)
40A
Current (Ie) in AC21A (415V)
40A
Current (Ie) in AC22A (415V)
32A
Current (Ie) in AC23A (415V)
32A
Power AC23A (415V)
15kW
Short-time current
400A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
32A
Terminals - Flexible wires
1.5-10mm²
Terminals - Rigid wires
1.5-16mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides

DATASHEET - PDF

Title
Size
Type
590.FEM3202 590.FEM3202 EN_590.FEM3202.pdf
69 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
