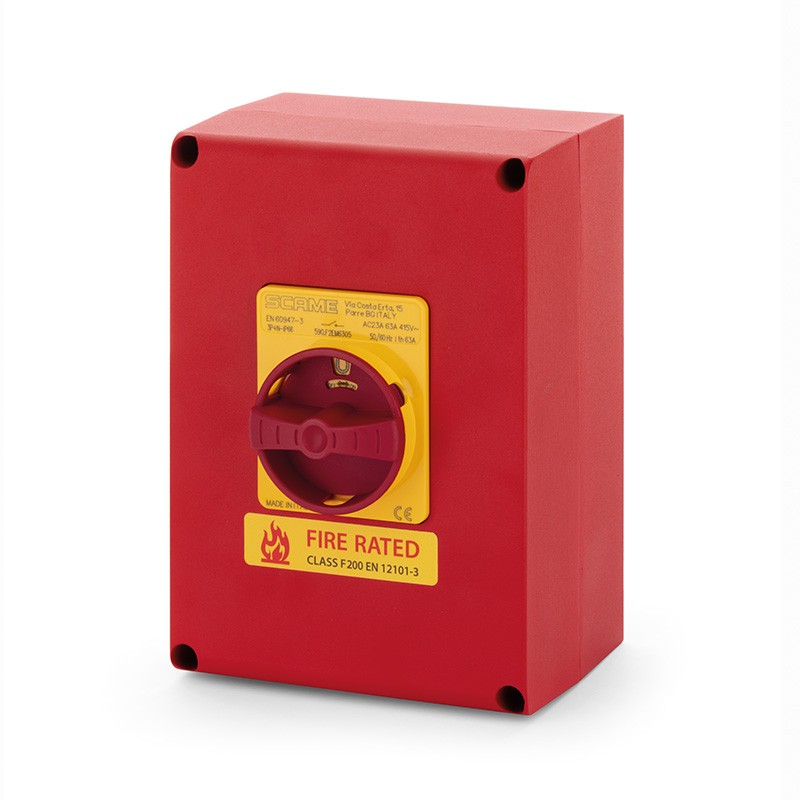

SCAME 590.F2EM6305 590.F2EM6305 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.F2EM6305 SCAME MANOEUVRING INT. 63A 3P+N IP66

Reference: 590.F2EM6305

Manufacturer: SCAME

Description:

MANOEUVRING INT. 63A 3P+N IP66
63A 3P+N IP66 150x210x107mm Y2 IK10 EMERGENCY YELLOW/RED FIRE RATED

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 155,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP66
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
63A
Poles
3P+N
Switch size
Y2
Rated voltage
690V
Dimensions
150x210x107mm
Notes
FIRE RATED
Fire rated class
F200 (120min)
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
63A
Current (Ie) in AC21A (415V)
63A
Current (Ie) in AC21A (500V)
63A
Current (Ie) in AC21A (690V)
63A
Current (Ie) in AC22A (415V)
63A
Current (Ie) in AC22A (500V)
63A
Current (Ie) in AC22A (690V)
63A
Current (Ie) in AC23A (415V)
63A
Current (Ie) in AC23A (500V)
40A
Current (Ie) in AC23A (690V)
30A
Current (Ie) in AC3 (415V)
40A
Current (Ie) in AC3 (690V)
25A
Current (Ie) in DC22A (250V)
63A
Power AC23A (415V)
33kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
63A
Terminals - Flexible wires
Terminals - Rigid wires
10-35mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
With late break and early make neutral pole
