> SCAME>Switches - SCAME>590.F2EM40006 SCAME MANEUVER INT. 400A 6P IP65 EMERGENCY
Previous Product Next Product

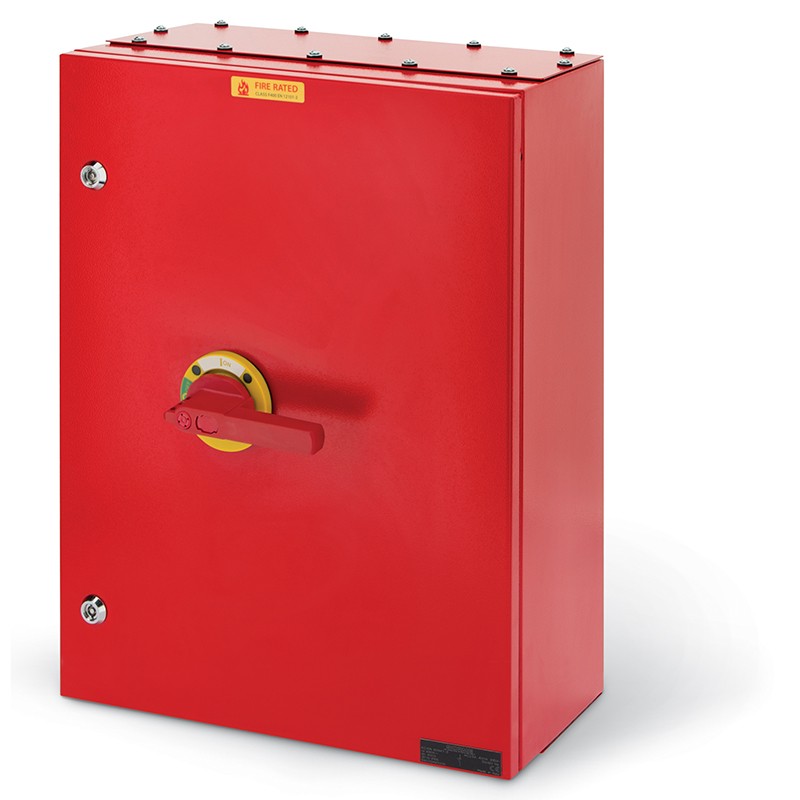

590.F2EM40006 SCAME MANEUVER INT. 400A 6P IP65 EMERGENCY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.F2EM40006 SCAME MANEUVER INT. 400A 6P IP65 EMERGENCY

590.F2EM40006

SCAME

MANEUVER INT. 400A 6P IP65 EMERGENCY

400A 6P IP65 800x800x300mm K3 IK10 EMERGENCY YELLOW/RED FIRE RATED

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
400A
Poles
6P
Switch size
K3
Rated voltage
690V
Dimensions
800x800x300mm
Notes
FIRE RATED
Fire rated class
F200 (120min)
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
500A
Current (Ie) in AC21A (415V)
500A
Current (Ie) in AC21A (500V)
500A
Current (Ie) in AC21A (690V)
500A
Current (Ie) in AC22A (415V)
400A
Current (Ie) in AC22A (500V)
400A
Current (Ie) in AC22A (690V)
400A
Current (Ie) in AC23A (415V)
400A
Current (Ie) in AC23A (500V)
315A
Current (Ie) in AC23A (690V)
250A
Power AC23A (415V)
200kW
Short-time current
13kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
400A
Terminal bolt size
M10
Palm width
25mm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Gland plate cable entry on bottom side


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.F2EM40006 590.F2EM40006 EN_590.F2EM40006.pdf 51 Kbytes 590.F2EM40006 590.F2EM40006 EN_590.F2EM40006.pdf
Download general catalog Download general catalog
