> SCAME>Switches - SCAME>590.F2EM10005 SCAME MANOEUVRING INT. 100A 3P+N IP66
ANUNCIAR
Previous Product Next Product

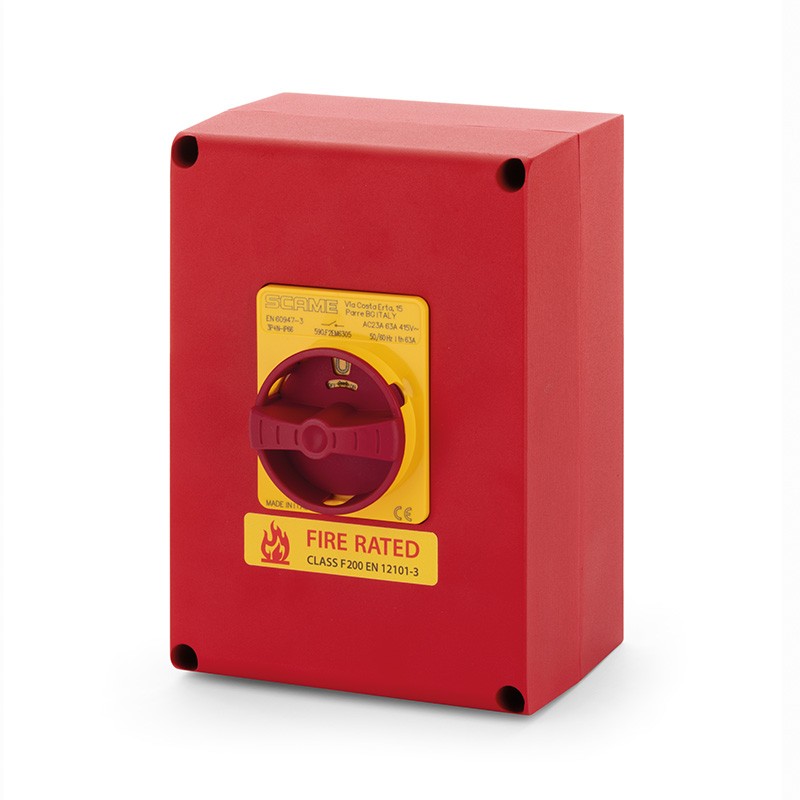

590.F2EM10005 SCAME MANOEUVRING INT. 100A 3P+N IP66 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.F2EM10005 SCAME MANOEUVRING INT. 100A 3P+N IP66

590.F2EM10005

SCAME

MANOEUVRING INT. 100A 3P+N IP66

100A 3P+N IP66 150x210x107mm Y4 IK10 EMERGENCY YELLOW/RED FIRE RATED

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $332.49
Unit price: $332.49
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP66
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
100A
Poles
3P+N
Switch size
Y4
Rated voltage
690V
Dimensions
150x210x107mm
Notes
FIRE RATED
Fire rated class
F200 (120min)
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
100A
Current (Ie) in AC22A (500V)
100A
Current (Ie) in AC22A (690V)
100A
Current (Ie) in AC23A (415V)
100A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
46kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
30kAeff
Associate fuse - type gG
100A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
With late break and early make neutral pole


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.F2EM10005 590.F2EM10005 EN_590.F2EM10005.pdf 69 Kbytes 590.F2EM10005 590.F2EM10005 EN_590.F2EM10005.pdf
