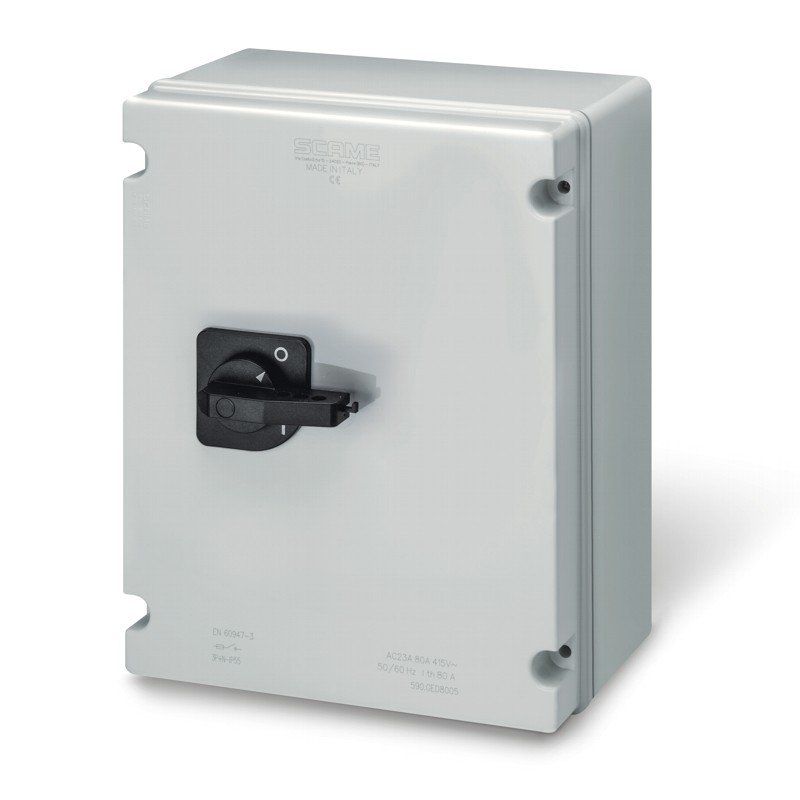

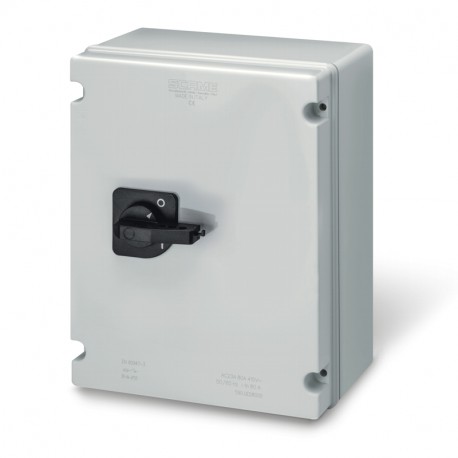

590.EMD16005 SCAME SWITCH DISCONNECTOR IP65 160A 3P+N View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.EMD16005 SCAME SWITCH DISCONNECTOR IP65 160A 3P+N

590.EMD16005

SCAME

SWITCH DISCONNECTOR IP65 160A 3P+N

MANOEUVRING INT. 160A 3P+N IP55

160A 3P+N IP55 DIN-NH 370x450x180mm KF2 IK08 EMERGENCY YELLOW/RED FUSE: DIN-NH GW 650°C

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME > ISOLATORS Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP55
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
160A
Poles
3P+N
Switch size
KF2
Fuse type
DIN-NH
Rated voltage
690V
Dimensions
370x450x180mm
Notes
FUSE: DIN-NH
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Rated insulation voltage (Ui)
1000VAC
1500VDC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
160A
Current (Ie) in AC21A (415V)
160A
Current (Ie) in AC21A (500V)
160A
Current (Ie) in AC21A (690V)
160A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
160A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
100A
Current (Ie) in DC21A (220V)
160A
Current (Ie) in DC21A (400V)
160A
Current (Ie) in DC22A (220V)
160A
Current (Ie) in DC23A (220V)
160A
Current (Ie) in DC23A (400V)
160A
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
160A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
Handle padlockable in OFF position only (3 padlocks)
Equipped with door interlock
Fuses not supplied
Blank sides
With late break and early make neutral pole


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.EMD16005 590.EMD16005 EN_590.EMD16005.pdf 26 Kbytes 590.EMD16005 590.EMD16005 EN_590.EMD16005.pdf
Download general catalog Download general catalog
