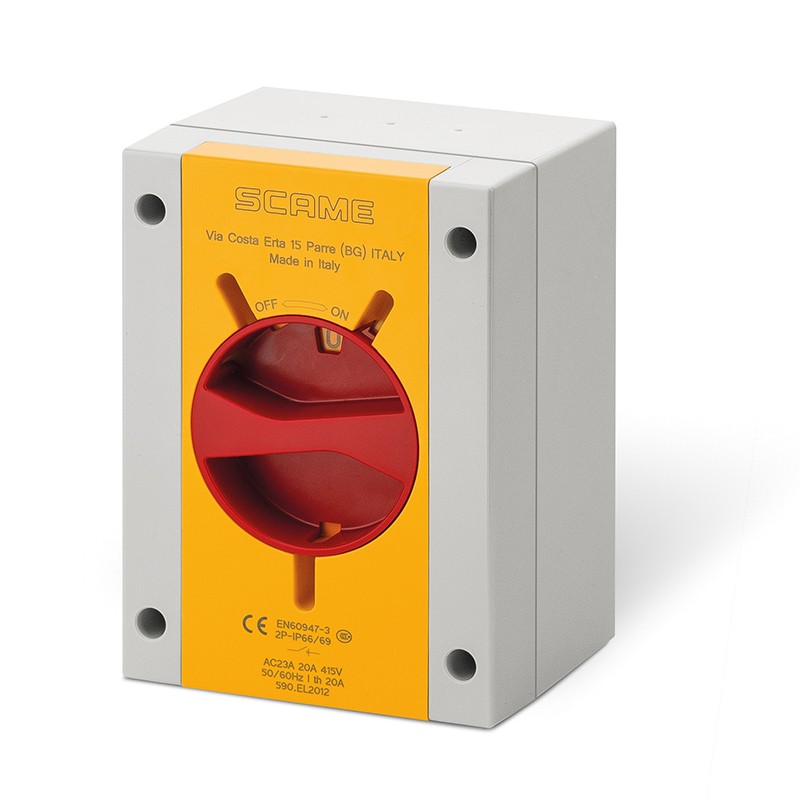

590.EM2012.SN SCAME MANOEUVRING INT. 20A 1P+SN IP66/IP69 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.EM2012.SN SCAME MANOEUVRING INT. 20A 1P+SN IP66/IP69

590.EM2012.SN

SCAME

MANOEUVRING INT. 20A 1P+SN IP66/IP69

20A 1P+N LINK IP66/IP69 110x150x87mm Y1 IK09 EMERGENCY YELLOW/RED SN (WITH NEUTRAL LINK) GW 650°C

More details


Switches - SCAME > ISOLATORS Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $36.34
Unit price: $36.34
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66/IP69
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
20A
Poles
1P+N LINK
Switch size
Y1
Rated voltage
250V
Dimensions
110x150x87mm
Notes
SN (WITH NEUTRAL LINK)
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
25A
Current (Ie) in AC21A (415V)
25A
Current (Ie) in AC21A (500V)
25A
Current (Ie) in AC21A (690V)
25A
Current (Ie) in AC22A (415V)
20A
Current (Ie) in AC22A (500V)
20A
Current (Ie) in AC22A (690V)
20A
Current (Ie) in AC23A (415V)
20A
Current (Ie) in AC23A (500V)
20A
Current (Ie) in AC23A (690V)
20A
Current (Ie) in AC3 (415V)
18A
Current (Ie) in AC3 (690V)
12A
Current (Ie) in DC22A (250V)
25A
Current (Ie) in DC22A (600V)
10A
Power AC23A (415V)
9kW
Short-time current
400A Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
20A
Terminals - Flexible wires
1.5-10mm²
Terminals - Rigid wires
1.5-16mm²
Catalogue notes
Handle padlockable in OFF position only (3 padlocks)
Equipped with door interlock
Blank side with drilling point marks on top side base
Break-through cable entries on bottom side base
Reversible base
Unswitched neutral (solid neutral terminal block)
