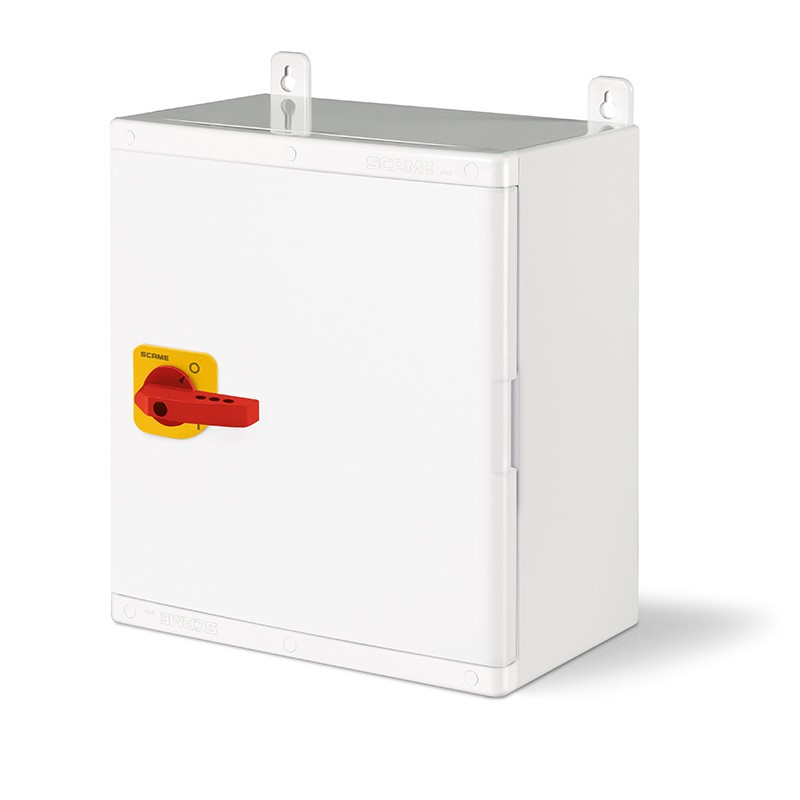

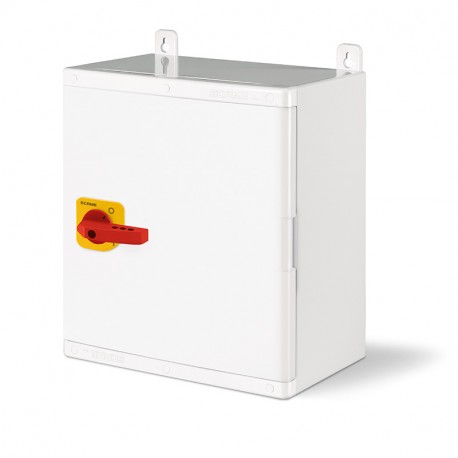

590.EM20005.SN SCAME MANOEUVRING INT. 200A 3P+SN IP65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.EM20005.SN SCAME MANOEUVRING INT. 200A 3P+SN IP65

590.EM20005.SN

SCAME

MANOEUVRING INT. 200A 3P+SN IP65

200A 3P+N LINK IP65 460x520x245mm K2 IK08 EMERGENCY YELLOW/RED SN (WITH NEUTRAL LINK) GW 650°C

More details


Switches - SCAME > ISOLATORS Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
200A
Poles
3P+N LINK
Switch size
K2
Rated voltage
690V
Dimensions
460x520x245mm
Notes
SN (WITH NEUTRAL LINK)
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
250A
Current (Ie) in AC21A (415V)
250A
Current (Ie) in AC21A (500V)
250A
Current (Ie) in AC21A (690V)
250A
Current (Ie) in AC22A (415V)
200A
Current (Ie) in AC22A (500V)
200A
Current (Ie) in AC22A (690V)
200A
Current (Ie) in AC23A (415V)
200A
Current (Ie) in AC23A (500V)
160A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
105kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
200A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.EM20005.SN 590.EM20005.SN EN_590.EM20005.SN.pdf 35 Kbytes 590.EM20005.SN 590.EM20005.SN EN_590.EM20005.SN.pdf
