SCAMESwitches - SCAMEISOLATORS SERIES - SCAME590.EM20005 SCAME MANOEUVRING INT. 200A 3P+N IP65

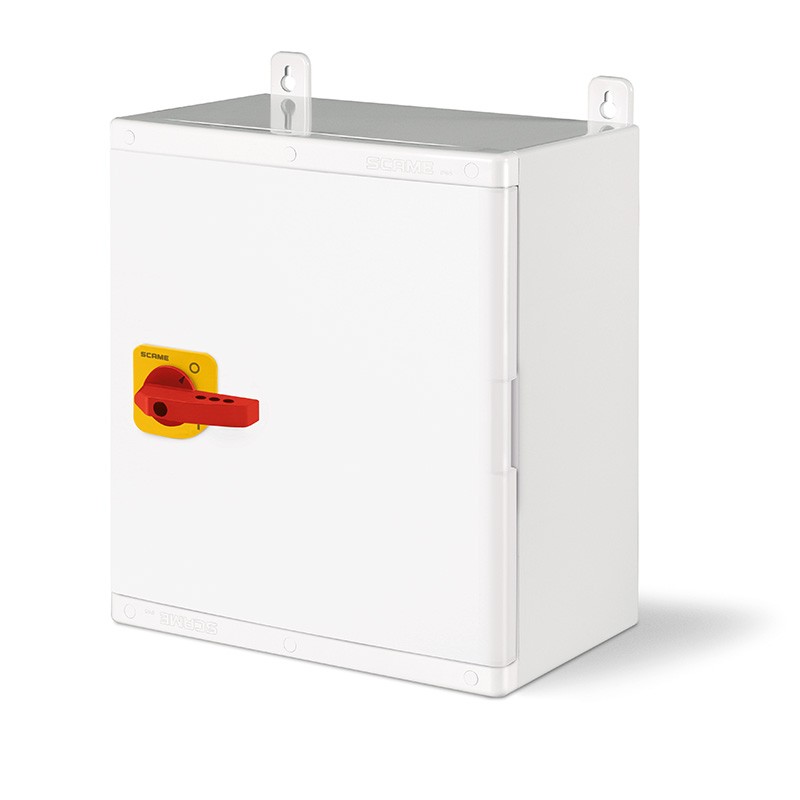

SCAME 590.EM20005 590.EM20005 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

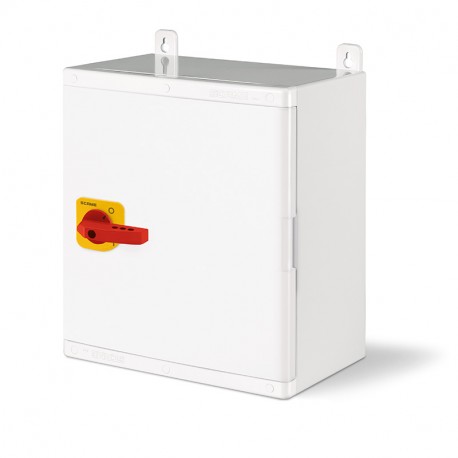

590.EM20005 SCAME MANOEUVRING INT. 200A 3P+N IP65

Reference: 590.EM20005

Manufacturer: SCAME

Description:

MANOEUVRING INT. 200A 3P+N IP65
200A 3P+N IP65 460x520x245mm K2 IK08 EMERGENCY YELLOW/RED GW 650°C

Categories:

  • SCAME > Switches - SCAME > ISOLATORS Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 274,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
200A
Poles
3P+N
Switch size
K2
Rated voltage
690V
Dimensions
460x520x245mm
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
250A
Current (Ie) in AC21A (415V)
250A
Current (Ie) in AC21A (500V)
250A
Current (Ie) in AC21A (690V)
250A
Current (Ie) in AC22A (415V)
200A
Current (Ie) in AC22A (500V)
200A
Current (Ie) in AC22A (690V)
200A
Current (Ie) in AC23A (415V)
200A
Current (Ie) in AC23A (500V)
160A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
105kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
200A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
With late break and early make neutral pole
