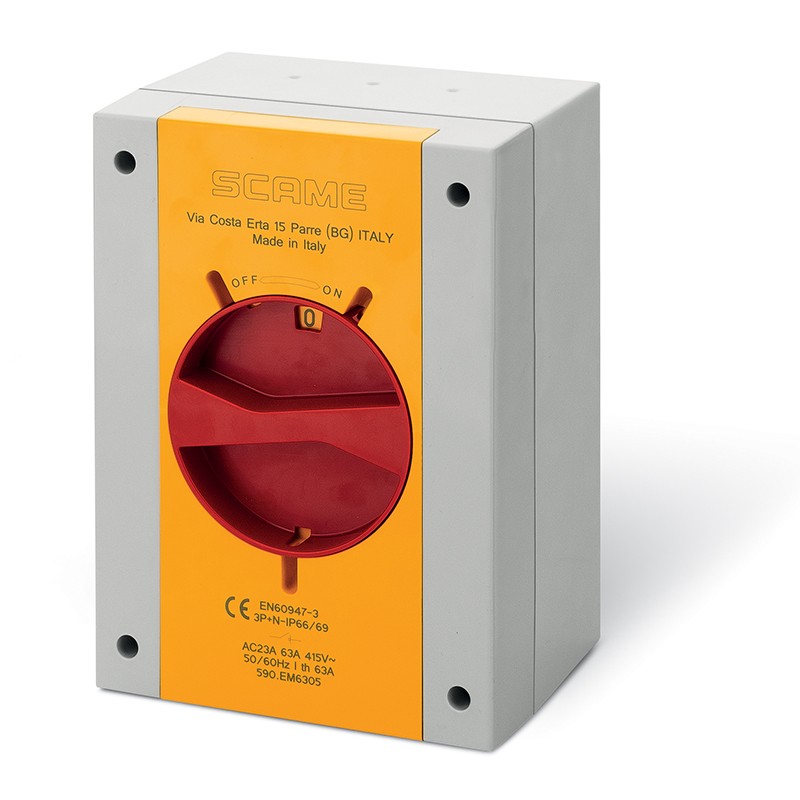

590.EM16005.SN SCAME MANOEUVRING INT. 160A 3P+SN IP66/69 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.EM16005.SN SCAME MANOEUVRING INT. 160A 3P+SN IP66/69

590.EM16005.SN

SCAME

MANOEUVRING INT. 160A 3P+SN IP66/69

MANOEUVRING INT. 160A 3P+SN IP55

160A 3P+N LINK IP66/IP69 240x340x137mm Y5 IK09 EMERGENCY YELLOW/RED SN (WITH NEUTRAL LINK) GW 650°C

More details


Switches - SCAME > ISOLATORS Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $319.54
Unit price: $319.54
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66/IP69
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
160A
Poles
3P+N LINK
Switch size
Y5
Rated voltage
690V
Dimensions
240x340x137mm
Notes
SN (WITH NEUTRAL LINK)
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
160A
Current (Ie) in AC21A (415V)
160A
Current (Ie) in AC21A (500V)
160A
Current (Ie) in AC21A (690V)
160A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
125A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
69kW
Short-time current
3kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
125A
Terminals - Flexible wires
10-70mm²
Terminals - Rigid wires
10-70mm²
Catalogue notes
Handle padlockable in OFF position only (3 padlocks)
Equipped with door interlock
Blank side with drilling point marks on top side base
Break-through cable entries on bottom side base
Reversible base
Unswitched neutral (solid neutral terminal block)


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
590.EM16005.SN 590.EM16005.SN EN_590.EM16005.SN.pdf 54 Kbytes 590.EM16005.SN 590.EM16005.SN EN_590.EM16005.SN.pdf
