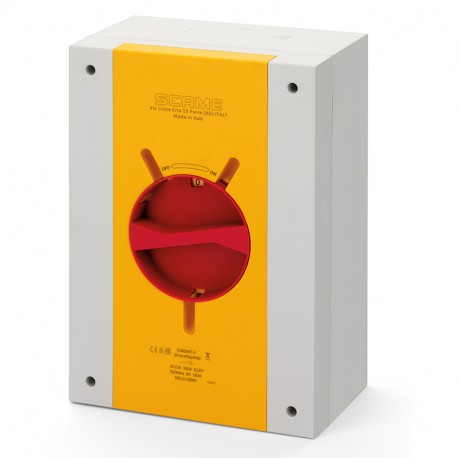

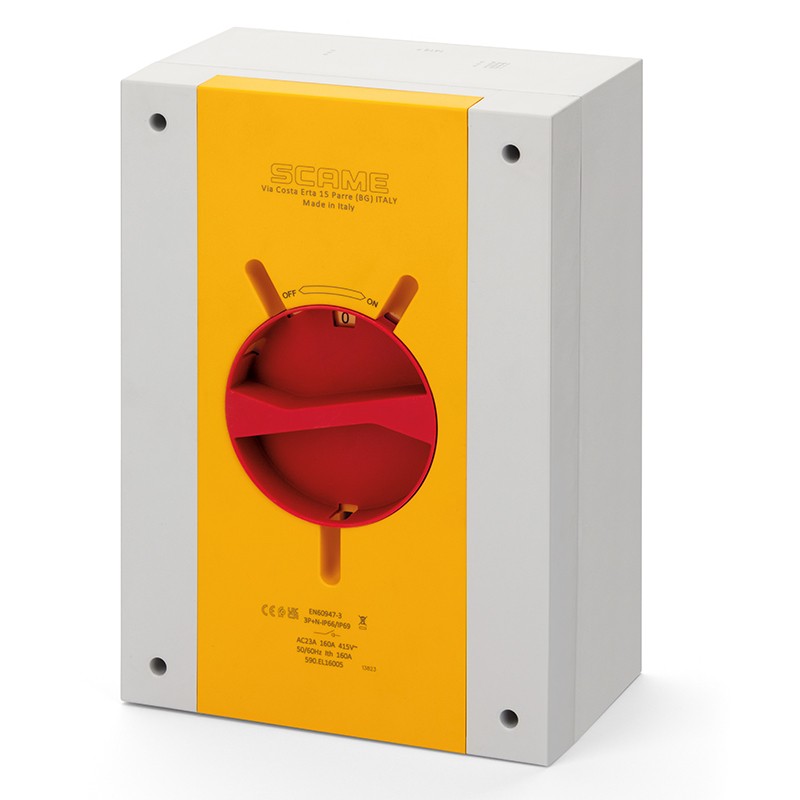

590.EL8008 SCAME MANOEUVRING INT 80A 8P IP66 EMERGENCY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.EL8008 SCAME MANOEUVRING INT 80A 8P IP66 EMERGENCY

590.EL8008

SCAME

MANOEUVRING INT 80A 8P IP66 EMERGENCY

80A 8P IP66/IP69 240x340x137mm Y4 IK09 GENERAL YELLOW/RED LOCKABLE ON-OFF GW 650°C

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66/IP69
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
YELLOW/RED
Rated current
80A
Poles
8P
Switch size
Y4
Rated voltage
690V
Dimensions
240x340x137mm
Notes1
LOCKABLE ON-OFF
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
100A
Current (Ie) in AC21A (415V)
100A
Current (Ie) in AC21A (500V)
100A
Current (Ie) in AC21A (690V)
100A
Current (Ie) in AC22A (415V)
80A
Current (Ie) in AC22A (500V)
80A
Current (Ie) in AC22A (690V)
80A
Current (Ie) in AC23A (415V)
80A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
37kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
80A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Equipped with door interlock
With late break and early make neutral pole
Blank side with drilling point marks on top side base
Break-through cable entries on bottom side base
Reversible base
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
