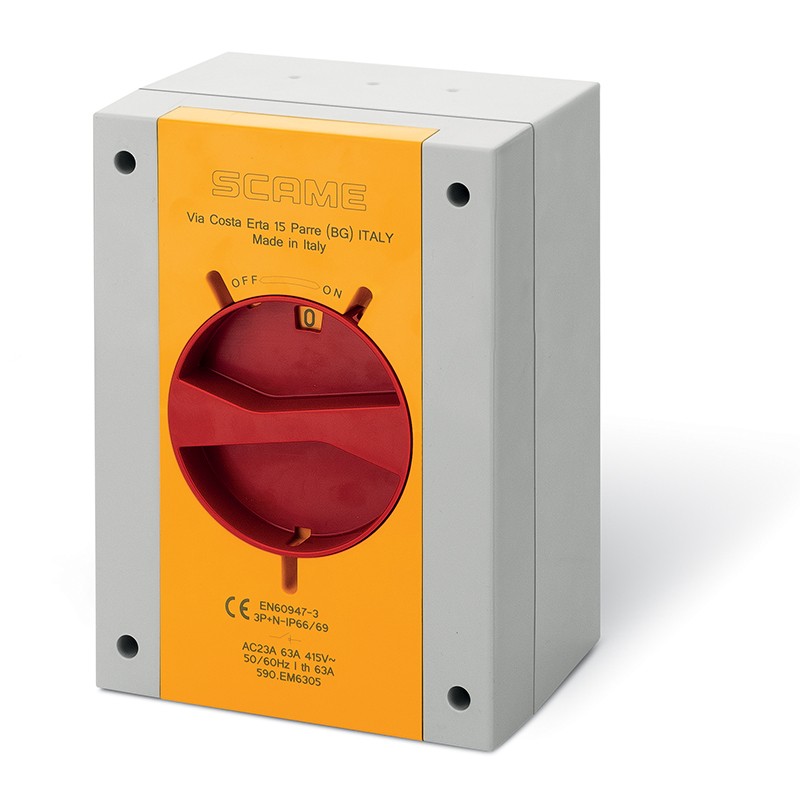

590.EL6302.SN SCAME MANOEUVRING INT. 63A 1P+SN IP66/IP69 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.EL6302.SN SCAME MANOEUVRING INT. 63A 1P+SN IP66/IP69

590.EL6302.SN

SCAME

MANOEUVRING INT. 63A 1P+SN IP66/IP69

63A 1P+N LINK IP66/IP69 160x220x115mm Y2 IK09 GENERAL YELLOW/RED SN (WITH NEUTRAL LINK) LOCKABLE ON-OFF GW 650°C

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66/IP69
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
YELLOW/RED
Rated current
63A
Poles
1P+N LINK
Switch size
Y2
Rated voltage
250V
Dimensions
160x220x115mm
Notes
SN (WITH NEUTRAL LINK)
Notes1
LOCKABLE ON-OFF
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
4kV
Thermal current (Ithe)
63A
Current (Ie) in AC21A (415V)
63A
Current (Ie) in AC21A (500V)
63A
Current (Ie) in AC21A (690V)
63A
Current (Ie) in AC22A (415V)
63A
Current (Ie) in AC22A (500V)
63A
Current (Ie) in AC22A (690V)
63A
Current (Ie) in AC23A (415V)
63A
Current (Ie) in AC23A (500V)
40A
Current (Ie) in AC23A (690V)
30A
Current (Ie) in AC3 (415V)
40A
Current (Ie) in AC3 (690V)
25A
Current (Ie) in DC22A (250V)
63A
Power AC23A (415V)
33kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
10kAeff
Associate fuse - type gG
63A
Terminals - Flexible wires
Terminals - Rigid wires
10-35mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank side with drilling point marks on top side base
Break-through cable entries on bottom side base
Reversible base
Unswitched neutral (solid neutral terminal block)
