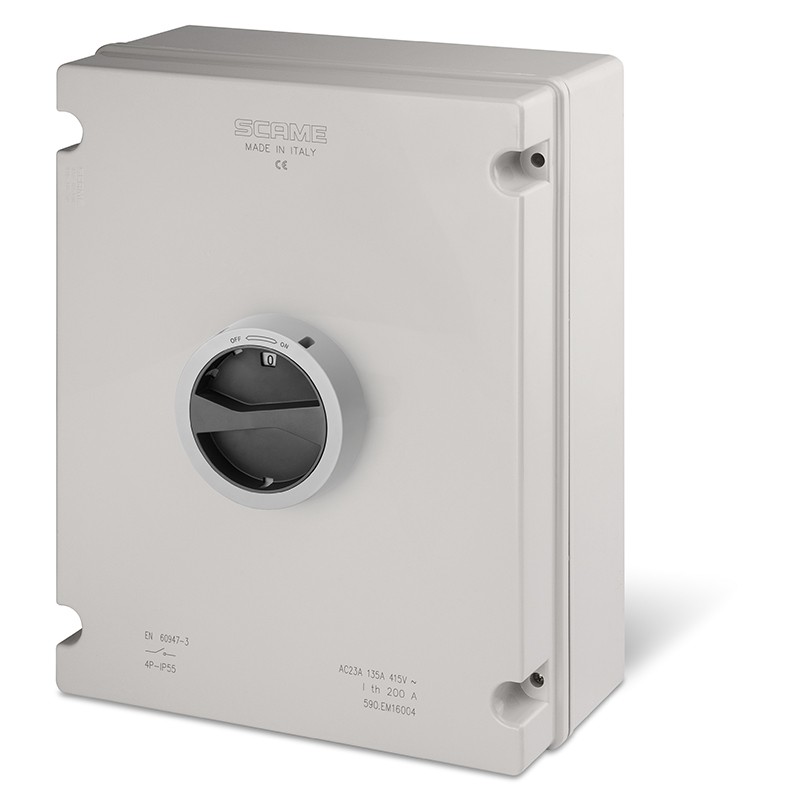

590.CGE16006 SCAME MANOEUVRING INT. 160A 6P IP65 GENERAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.CGE16006 SCAME MANOEUVRING INT. 160A 6P IP65 GENERAL

590.CGE16006

SCAME

MANOEUVRING INT. 160A 6P IP65 GENERAL

160A 6P IP55 308x388x128mm Y5 IK08 GENERAL GREY/BLACK GW 650°C

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $603.65
Unit price: $603.65
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP55
Installation temperature
-25°C/+60°C
Type
GENERAL
Colour
GREY/BLACK
Rated current
160A
Poles
6P
Switch size
Y5
Rated voltage
690V
Dimensions
308x388x128mm
Cable shielding (ø min-max)
30-37mm
EMC clips number
2
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
160A
Current (Ie) in AC21A (415V)
160A
Current (Ie) in AC21A (500V)
160A
Current (Ie) in AC21A (690V)
160A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
125A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
69kW
Short-time current
3kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
125A
Terminals - Flexible wires
10-70mm²
Terminals - Rigid wires
10-70mm²
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Equipped with door interlock
Blank sides
EMC (Electromagnetic Compatibility) compliant connection


Datasheet - PDF

▲
