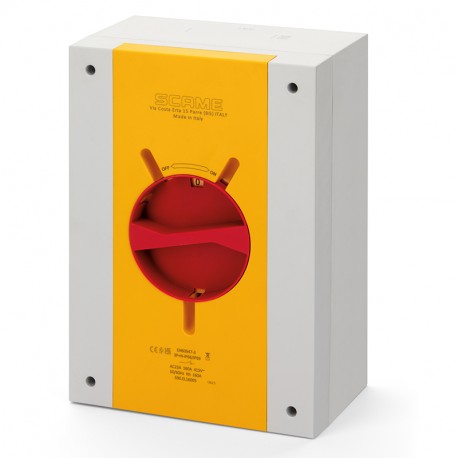

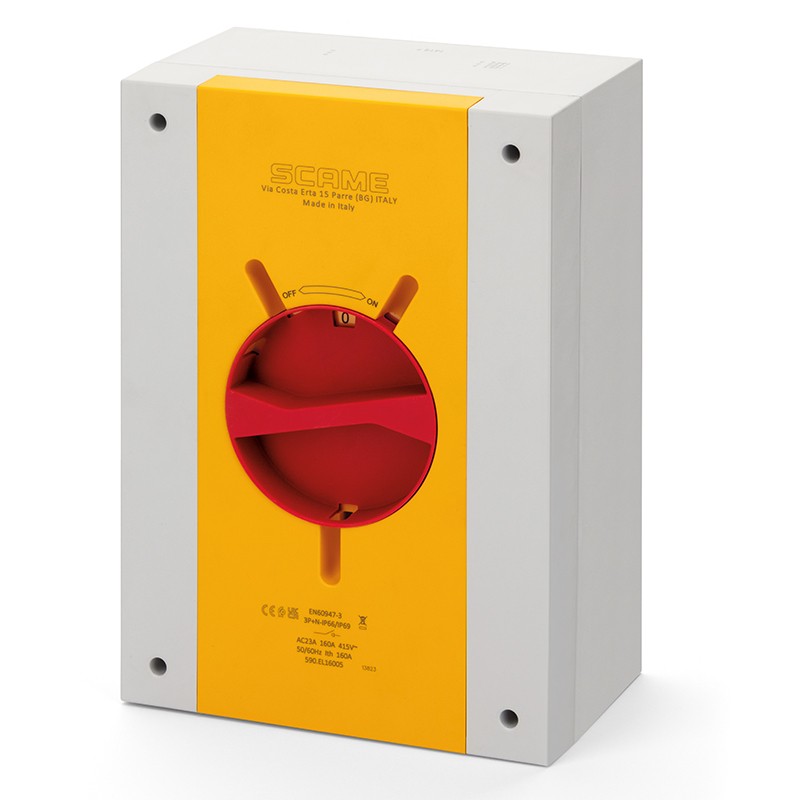

590.CEM10006 SCAME MANEUVERING INT 100A 6P IP55 EMERGENCY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.CEM10006 SCAME MANEUVERING INT 100A 6P IP55 EMERGENCY

590.CEM10006

SCAME

MANEUVERING INT 100A 6P IP55 EMERGENCY

100A 6P IP55 308x338x128mm Y4 IK08 EMERGENCY YELLOW/RED GW 650°C

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ISOLATORS-TP Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP55
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
100A
Poles
6P
Switch size
Y4
Rated voltage
690V
Dimensions
308x338x128mm
Cable shielding (ø min-max)
22-30mm
EMC clips number
2
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
100A
Current (Ie) in AC22A (500V)
100A
Current (Ie) in AC22A (690V)
100A
Current (Ie) in AC23A (415V)
100A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
46kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
30kAeff
Associate fuse - type gG
100A
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Catalogue notes
Handle padlockable in OFF position only (3 padlocks)
Equipped with door interlock
Blank side with drilling point marks on top side base
Break-through cable entries on bottom side base
Reversible base
EMC (Electromagnetic Compatibility) compliant connection
