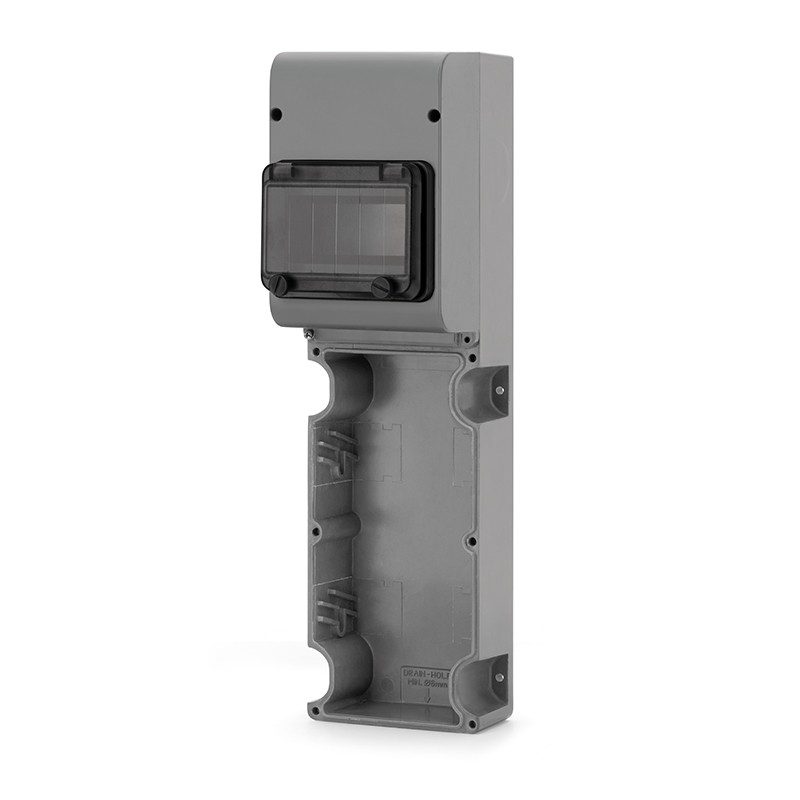

579.5112.D SCAME MODULAR SUPPORTS 6 MOD. IP66/IP67/IP69 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

579.5112.D SCAME MODULAR SUPPORTS 6 MOD. IP66/IP67/IP69

579.5112.D

SCAME

MODULAR SUPPORTS 6 MOD. IP66/IP67/IP69

MODULAR BASE 6 MOD. IP66/IP67/IP69 16A-32A - 6 DIN

More details


Modular system - SCAME > ADVANCE-GRP System - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $131.56
Unit price: $131.56
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

Best sellers

More info



Commercial Series
ADVANCE-GRP System
Synthetical description
MODULAR BASE
Material
GRP Glass Reinforced Polyester
Protection degree IP
IP66/IP67/IP69
N.° modules
6 MOD.
Notes
16A-32A - 6 DIN
Dimensions
130x460mm
Flange
130X460MM
Dissipable power
9W
Protection degree IK
IK10
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Working temperature
-40°C/+60°C
Catalogue notes
IP66/IP67/IP69 when coupled with the respective component.
Blank side with drilling point marks
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
Copercho piano


Datasheet - PDF
