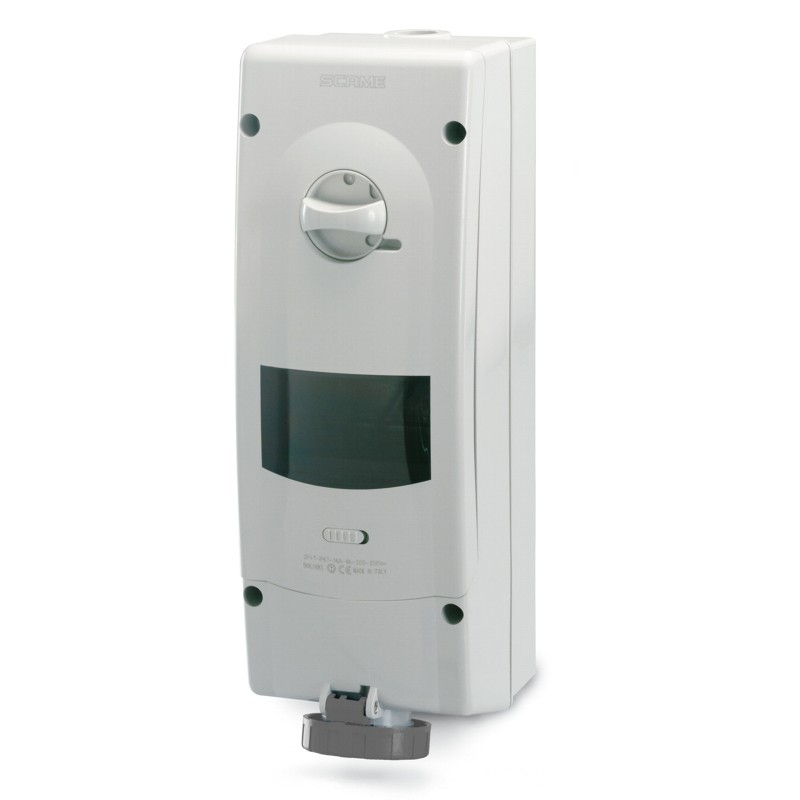

568.63876 SCAME ENCLAV BASE. MEC. 3P+N+T IP67 63A 7h View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

568.63876 SCAME ENCLAV BASE. MEC. 3P+N+T IP67 63A 7h

568.63876

SCAME

ENCLAV BASE. MEC. 3P+N+T IP67 63A 7h

63A 3P+N+E 7h 480-500V 60Hz 50Hz 136X390 MM Screw terminals With mechanical interlock

More details


Surface mounting socket outlets - SCAME > ADVANCE2 Series With rail DIN - IP66/IP67 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Material series
ADVANCE 2 Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+N+E
Hour position
7h
Rated voltage (range)
400V-up
Rated voltage
480-500V
Working frequency
60Hz
50Hz
Colour
BLACK
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67
Protection degree IK
IK07
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
136X390 MM
Cable entry
DRILLING POINT MARK
Options
With mechanical interlock
Notes
WITH DIN RAIL (6 MODULES)
Padlock
ø5mm
Catalogue notes


Datasheet - PDF
