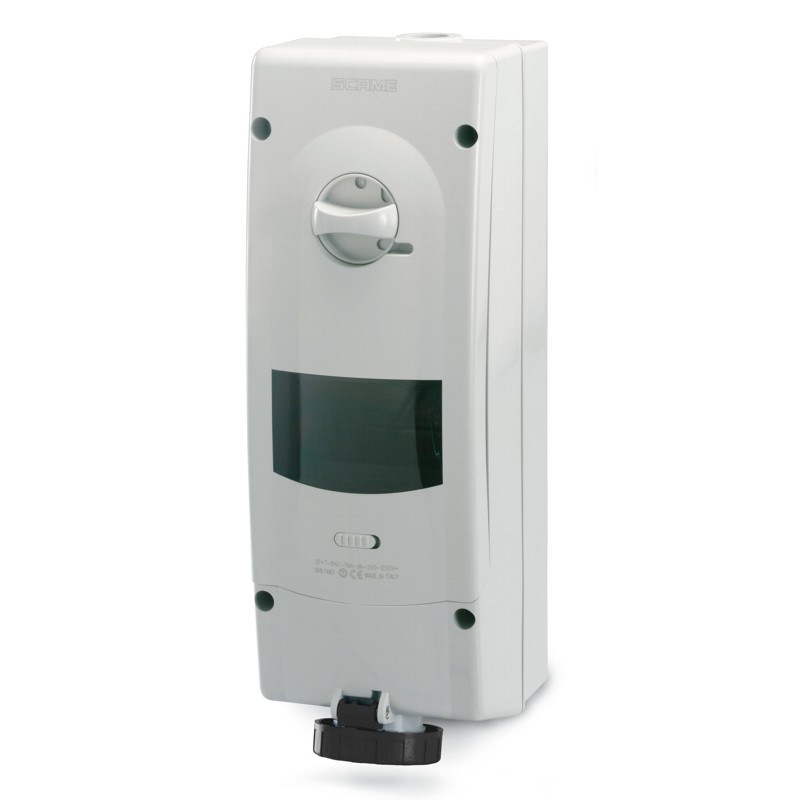

SCAME 568.63867 568.63867 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

568.63867 SCAME ENCLAV BASE. MEC. 3P+T IP67 63A 5h

Reference: 568.63867

Manufacturer: SCAME

Description:

ENCLAV BASE. MEC. 3P+T IP67 63A 5h
63A 3P+E 5h 600-690V 60Hz 50Hz 136X390MM Screw terminals With mechanical interlock

Categories:

  • SCAME > Surface mounting socket outlets - SCAME > ADVANCE2 Series With rail DIN - IP66/IP67 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ADVANCE 2 Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+E
Hour position
5h
Rated voltage
600-690V
Working frequency
60Hz
50Hz
Colour
BLACK
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67
Protection degree IK
IK07
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
136X390MM
Cable entry
DRILLING POINT MARK
Options
With mechanical interlock
Notes
WITH DIN RAIL (6 MODULES)
Padlock
ø5mm
Catalogue notes
Blank side with drilling point marks
Cable gland included
[LARGE] Possibility to enter from the bottom (smooth walls with drilling point mark)
Pay special attention when selecting the appropriate fuse with respect to the tension of the installation.
