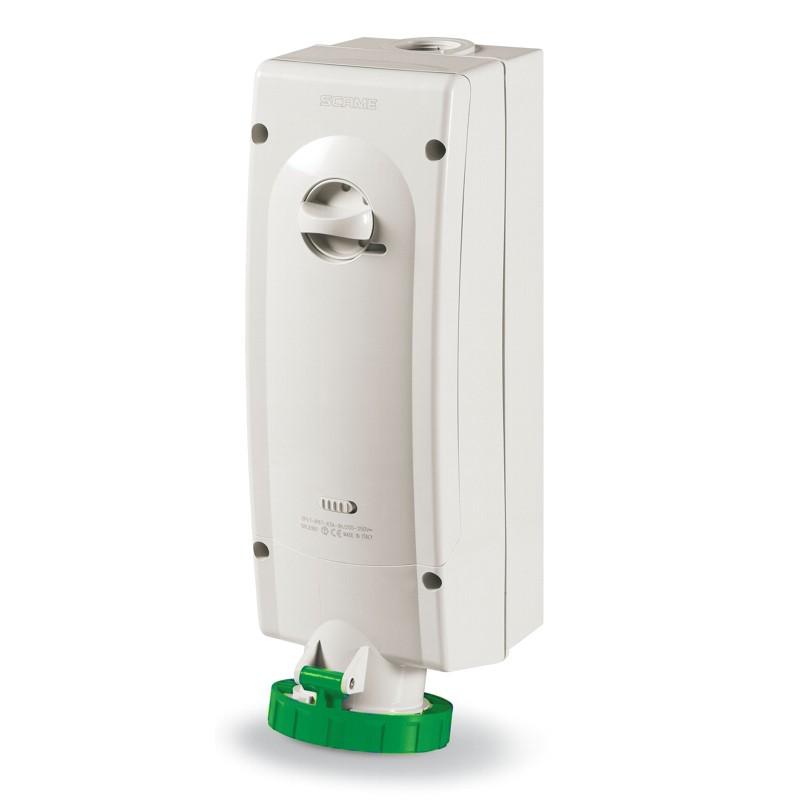

561.63872 SCAME ENC BASE. MEC. 3P+N+T IP66/IP67 63A 2h View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

561.63872 SCAME ENC BASE. MEC. 3P+N+T IP66/IP67 63A 2h

561.63872

SCAME

ENC BASE. MEC. 3P+N+T IP66/IP67 63A 2h

INTERLOCKED SOCKET

More details


Surface mounting socket outlets - SCAME > ADVANCE2 Series Without fuse holder - IP66/IP67 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $240.42
Unit price: $240.42
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial series
ADVANCE 2 Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+N+E
Hour position
2h
Rated voltage (range)
50-200V
Rated voltage
>50V
Working frequency
>300-500Hz
Colour
GREEN
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67
Protection degree IK
IK07
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
136X390MM
Cable entry
DRILLING POINT MARK
Options
With mechanical interlock
Padlock
ø5mm

Datasheet - PDF
