SCAME508.32833 SCAME ENC BASE. Mec. 32A 2P+T 12h

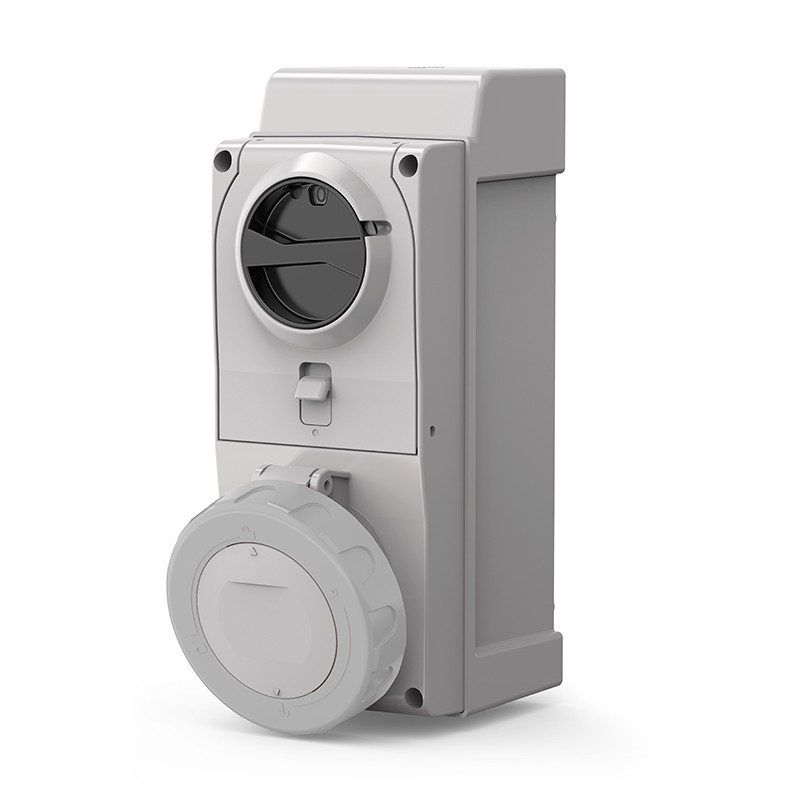

SCAME 508.32833 508.32833 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

508.32833 SCAME ENC BASE. Mec. 32A 2P+T 12h

Reference: 508.32833

Manufacturer: SCAME

Description:

ENC BASE. Mec. 32A 2P+T 12h
32A 2P+E 12h TST>50V 60Hz 50Hz Screw terminals With mechanical interlock

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
PROXIMA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
32A
Poles
2P+E
Hour position
12h
Rated voltage
TST>50V
Working frequency
60Hz
50Hz
Colour
GREY
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 10,3x38mm
Padlock
ø5mm
Catalogue notes
Top and bottom side cable entry
Blank side with drilling point marks

DATASHEET - PDF

Title
Size
Type
508.32833 508.32833 EN_508.32833.pdf
40 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
