SCAME508.1687 SCAME ENC BASE. Mec. 16A 3P+N+T 6h

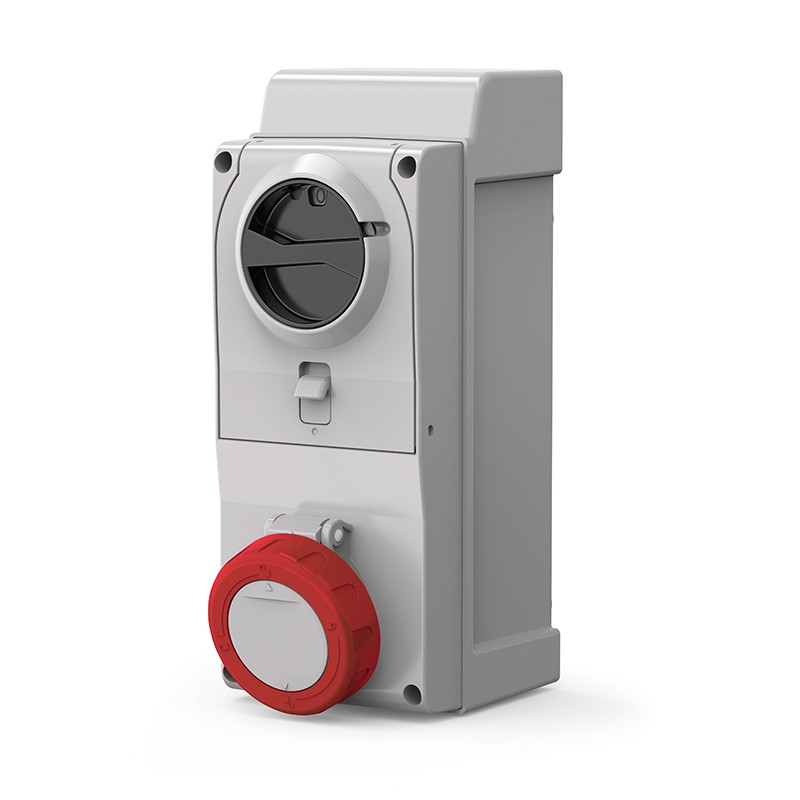

SCAME 508.1687 508.1687 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

508.1687 SCAME ENC BASE. Mec. 16A 3P+N+T 6h

Reference: 508.1687

Manufacturer: SCAME

Description:

ENC BASE. Mec. 16A 3P+N+T 6h
16A 3P+N+E 6h 346-415V 60Hz 50Hz Screw terminals With mechanical interlock

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 71,17 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Commercial Series
PROXIMA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
3P+N+E
Hour position
6h
Rated voltage
346-415V
Working frequency
60Hz
50Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 10,3x38mm
Padlock
ø5mm
Catalogue notes
Top and bottom side cable entry
Blank side with drilling point marks

DATASHEET - PDF

Title
Size
Type
508.1687 508.1687 EN_508.1687.pdf
41 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
