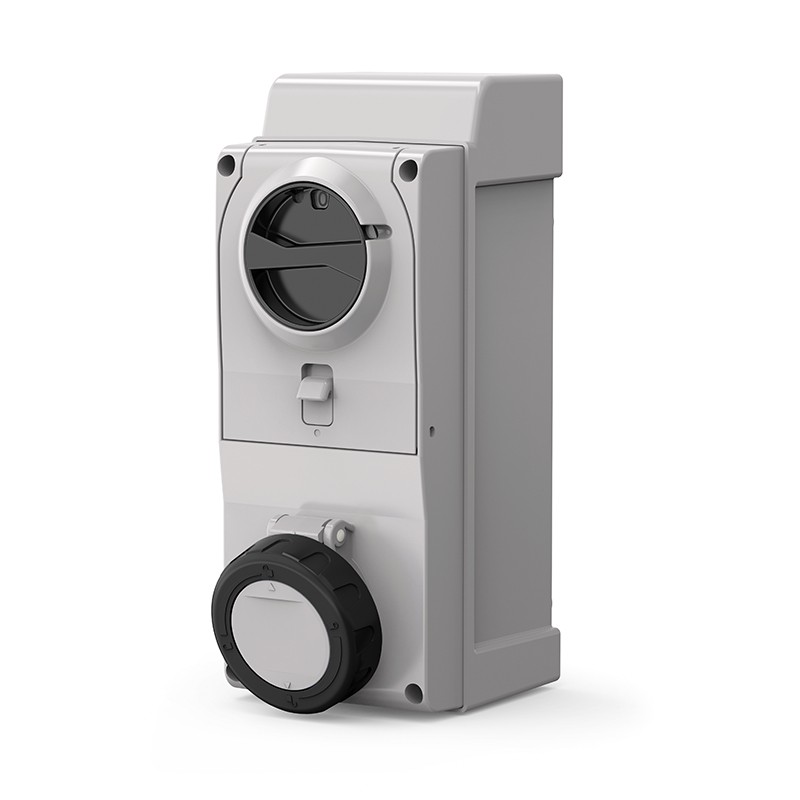

508.16866 SCAME ENC BASE. Mec. 16A 3P+T 7h IP66/IP67/IP69
508.16866
SCAME
ENC BASE. Mec. 16A 3P+T 7h IP66/IP67/IP69
16A 3P+E 7h 480-500V 60Hz 50Hz Screw terminals With mechanical interlock
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Best sellers
▲More info
▲Material series
PROXIMA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
3P+E
Hour position
7h
Rated voltage (range)
400V-up
Rated voltage
480-500V
Working frequency
60Hz
50Hz
Colour
BLACK
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 10,3x38mm
Padlock
ø5mm
Catalogue notes
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SCAME EN.pdf | 19 Mbytes |
|
| 508.16866 508.16866 EN_508.16866.pdf | 38 Kbytes |
|
| Download general catalog |
|
